PHNEK Preheater Set for PCBs up to 11x7cm
/ 4x3"
Description
Indispensable for avoiding thermal shock on multilayer PCBs while
reworking.

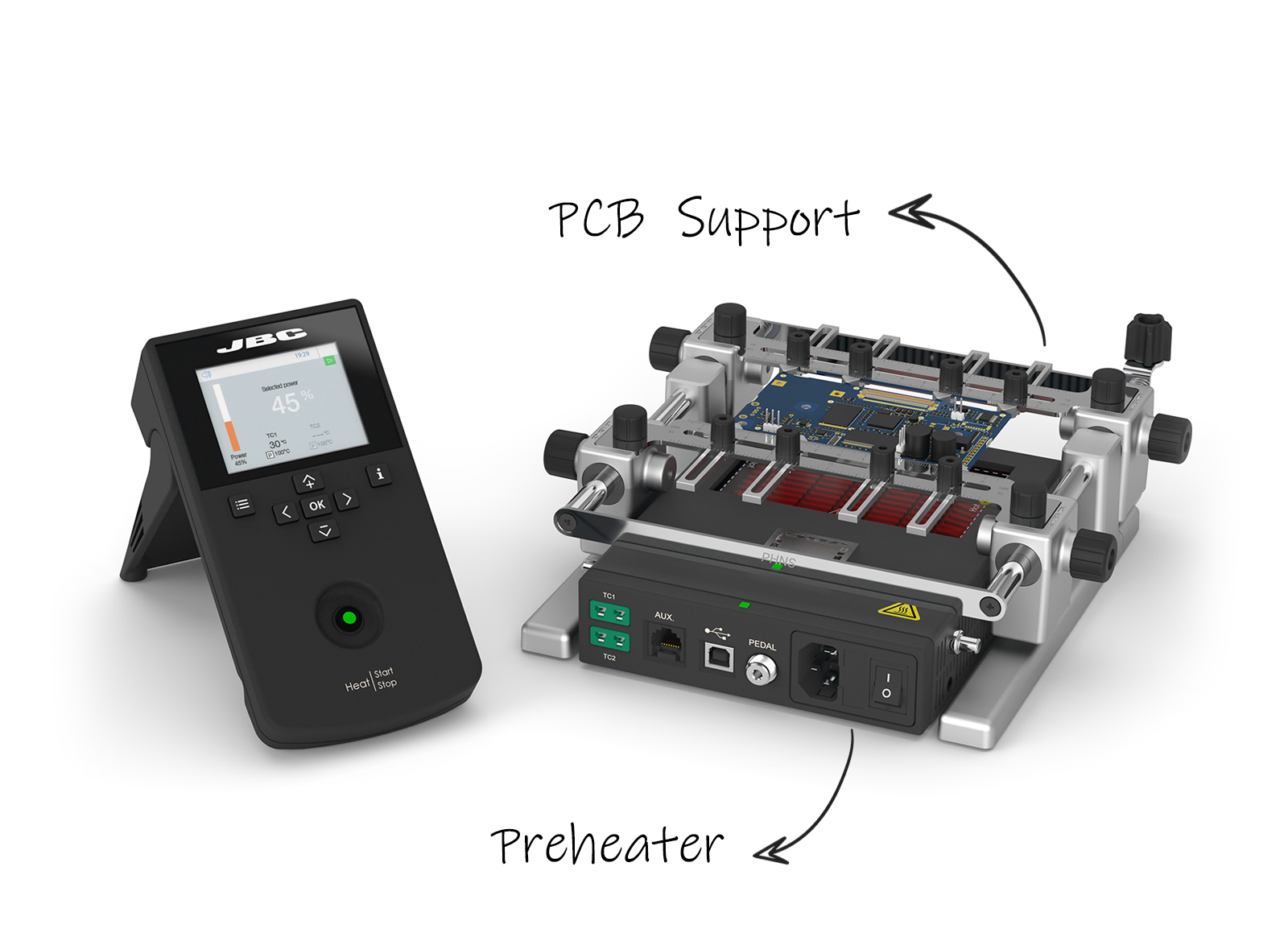

Its composition, Preheater and PCB support, is a complete solution to
rework small PCBAs, such as the ones commonly used in smartphones. It
features a heating area of 108 x 70 mm / 4.25 x 2.75 in.
Matchless reliability in temperature accuracy and control of the PCBA so
that no component is damaged.
It features three work modes:
Power Mode allows working at a fixed power level with the option of
using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the
regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use
of a control and protection thermocouple, without exceeding the
recommended limit levels in each application. It features 22
customizable profiles.
Two thermocouple can be connected in any of the three work modes.
PHNS Support is perfectly adapted to any type of PCB by means of its
many adjustable components and its 3 adjustable clearance positions 22,
45 or 65 mm / 0.86, 1.77 or 2.55 in.
Description
Indispensable for avoiding thermal shock on multilayer PCBs while
reworking.
Its composition, Preheater and PCB support, is a complete solution to
rework small PCBAs, such as the ones commonly used in smartphones. It
features a heating area of 108 x 70 mm / 4.25 x 2.75 in.
Matchless reliability in temperature accuracy and control of the PCBA so
that no component is damaged.
It features three work modes:
Power Mode allows working at a fixed power level with the option of
using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the
regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use
of a control and protection thermocouple, without exceeding the
recommended limit levels in each application. It features 22
customizable profiles.
Two thermocouple can be connected in any of the three work modes.
PHNS Support is perfectly adapted to any type of PCB by means of its
many adjustable components and its 3 adjustable clearance positions 22,
45 or 65 mm / 0.86, 1.77 or 2.55 in.
Specifications
| Specification
|
| Peak power |
300W |
| Selectable temperature |
50 to 250 ºC / 120 to 482 ºF |
| Heating area |
108 x 70 mm / 4.25 x 2.75 in |
| Type K TC connector |
2 for Control & Protection |
| Profiles |
22 (up to 16 steps for each), 3 preset profiles |
| Maximum work time |
50 min or indefinite |
| ESD safe |
Meet ANSI/ESD S20.20-2021 |
| USB-A |
Firmware update Graphics and profiles |
| USB-B |
PC communications |
| Robot connector |
Remote control |
| Aux. connector |
Console connection |
| Pedal Connector |
Connect a pedal (ref. P-005) to control the heater |
| Weight and Dimensions
|
| PreHeater Unit |
179 x 165 x 42 mm / 3.10 kg.
7.05 x 6.50 x 1.65 in / 6.83 lb. |
| Package |
280 x 280 x 164 mm / 4.20 kg.
11.02 x 11.02 x 6.46 in / 9.26 lb. |
