About Acute Technology

Acute Technology Inc. was established in 1996 and is headquartered in Taiwan. It focuses on the development of PC-Based measuring instruments.

Including TravelScope digital storage oscilloscope, TravelLogic logic analyzer, BusFinder eMMC, SD, MIPI D-PHY protocol analyzer, LA3000+ logic analyzer, DG3000/TraveData data generator, ADP series differential probe, TravelBus two-in-one analyzer, As well as MSO2000/3000 mixed signal analyzers, these analytical instruments provide various communication interface protocols and logic analysis. At the same time, it is light, thin, short and very easy to carry. We hope to provide customers with convenient and efficient solutions.

Huangjing Technology is committed to providing high-quality measuring instruments and constantly innovating to meet the needs of different application fields. Our products are widely used in the electronics industry, communication technology, and other fields that require precise measurement and analysis.

Products

Digital Storage Oscilloscopes
TS3124V oscilloscope Bandwidth: 200 MHz Analog channels: 4 Sampling rate: 1 GS/s Vertical resolution: 16 bits Learn More	TS3124H oscilloscope Bandwidth: 200 MHz Analog channels: 4 Sample rate: 1 GS/s Vertical resolution: 16 bits Learn More	TS3124B oscilloscope Bandwidth: 200 MHz Analog channels: 4 Sampling rate: 1 GS/s Vertical resolution: 8 bits Learn More	TS3124E oscilloscope Bandwidth: 200 MHz Analog channels: 4 Sampling rate: 1 GS/s Vertical resolution: 8 bits Learn More

Mixed Signal Oscilloscope
MSO3124E mixed signal oscilloscope Bandwidth: 200 MHz Analog channels: 4 Digital channels: 16 Sampling rate: 1 GS/s Learn More	MSO3124V mixed signal oscilloscope Bandwidth: 200 MHz Analog channels: 4 Digital channels: 16 Electrical characteristics verification: I2C, I3C, SPI, UART, ... Learn More	MSO3124H mixed signal oscilloscope Bandwidth: 200 MHz Analog channels: 4 Digital channels: 16 Oscilloscope stacking Learn More	MSO3124B Mixed Signal Oscilloscope Bandwidth: 200 MHz Analog channels: 4 Digital channels: 16 Vertical resolution: 8 bits Learn More

Protocol Analyzer
BF7264B+ Protocol Analyzer Channels: 64 Total Memory: 32Gb Timing Analysis: 2.4 GHz Supported Solutions: UFS2.1, Learn More	BF7264B Protocol Analyzer Channels: 64 Total Memory: 32Gb Timing Analysis: 2.4 GHz Supported Solutions: MIPI D-PHY 1.2, ... Learn More	UFS2.1 Support UFS 2.1 Gen 3, Rate A/B, up to 5.8Gbps per lane, 2 Lanes Learn More	SGMII Support SGMII 1Gbps, 100Mbps, 10Mbps, Ports: TXp, TXn, RXp, RXn, Ref.Clk Learn More
NAND Flash Support Data(I/O) pin: x8, x16 Support ONFI 4.1(NV-DDR3), Mode 8 / Toggle DDR 2.0 ~267MHz Learn More	eMMC 5.1 Support eMMC 5.1 HS400 / HS200 / CMD Queue Learn More	SD3.0/SDIO3.0 Support SD 3.0 SDR104 / SD6.0 Legacy mode SDR104, DDR200, Command Queue/ SDIO 3.0 Learn More	SD4.1 Support UHS-II, SD 3.0, SD 6.1 Legacy mode Learn More
MIPI D-PHY Supports D-PHY V1.2 to display DSI and CSI image data Learn More	eDP1.4a Support eDP 1.4a, up to 5.4Gbps, 4 Lanes Learn More	LA Probe Provides eMMC 5.1, NAND Flash, SD 3.0 (SDIO 3.0), Serial Flash (SPI NAND), SPI bus triggering and more than 100 bus decodes Learn More	LVDS Probe Can be applied to logic signal and low voltage differential signal measurement. Learn More

Logic Analyzer
TB3016B logic analyzer Channels: 25 Differential signal triggering/protocol/decoding: DP_Aux, CAN2.0/CAN-FD, RS485 Timing analysis: 800MHz Status analysis: 200MHz Learn More	TB3016E logic analyzer Channels: 19 Differential signal decoding: DP_Aux Timing analysis: 800MHz Status analysis: 200MHz Learn More	TB3016F logic analyzer Channels: 19 Differential signal decoding: DP_Aux Timing analysis: 800MHz Status analysis: 200MHz Learn More	TL4234B logic analyzer Channels: 34 Total Memory: 8Gb Timing Analysis: 2GHz Record Depth: 1Gb Learn More

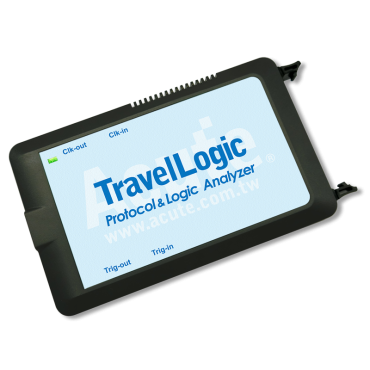

TL4134B logic analyzer Channels: 34 Total Memory: 4Gb Timing Analysis: 2GHz Record Depth: 512Mb Learn More	TL4134E logic analyzer Channels: 34 Total Memory: 4Gb Timing Analysis: 2GHz Record Depth: 512Mb Learn More	LA3136B+ logic analyzer Channels: 136 Total memory: 32 Gb Timing analysis: 2.4 GHz State analysis: 300 MHz Learn More	LA3068B+ logic analyzer Channels: 68 Total memory: 32 Gb Timing analysis: 2.4 GHz State analysis: 300 MHz Learn More
LA3136E+ logic analyzer Channels: 136 Total memory: 32 Gb Timing analysis: 2.4 GHz State analysis: 300 MHz Learn More	LA3068E+ logic analyzer Channels: 68 Total memory: 32 Gb Timing analysis: 2.4 GHz State analysis: 300 MHz Learn More

Digital Waveform Generator
TD3216B digital waveform generator Number of channels: 16 Output speed: up to 200Mbps @Ch Memory depth: 1Mb per channel Resolution: 0.1V Learn More	TD3116B digital waveform generator Number of channels: 16 Output speed: up to 200Mbps @Ch Memory depth: 1Mb per channel Resolution: 0.1V Learn More	TD3008E digital waveform generator Number of channels: 8 Output speed: up to 100Mbps @Ch Memory depth: 512Kb per channel Resolution: 0.1V Learn More	DG3128B digital waveform generator Number of channels: 112 Output speed: up to 400Mbps @Ch Memory depth: 256Mb per channel Resolution: 0.1V Learn More
DG3096B digital waveform generator Number of channels: 80 Output speed: up to 400Mbps @Ch Memory depth: 256Mb per channel Resolution: 0.1V Learn More	DG3064B digital waveform generator Number of channels: 48 Output speed: up to 400Mbps @Ch Memory depth: 256Mb per channel Resolution: 0.1V Learn More

Mixed Signal Logic Analyzer
MSO1116E Mixed Signal Logic Analyzer Analog/digital channels: 16 [shared channels] Bandwidth: 40 MHz Sample rate: 200 MS/s Total memory: 4 Gb Learn More	MSO1008E Mixed Signal Logic Analyzer Analog/digital channels: 8 [shared channels] Bandwidth: 40 MHz Sample rate: 200 MS/s Total memory: 2 Gb Learn More	MSO2216B Mixed Signal Logic Analyzer Analog/digital channels: 16 [shared channels] Bandwidth: 40 MHz Sample rate: 200 MS/s Total memory: 8 Gb Learn More	MSO2116B Mixed Signal Logic Analyzer Analog/digital channels: 16 [shared channels] Bandwidth: 40 MHz Sample rate: 200 MS/s Total memory: 4 Gb Learn More

High Voltage Differential Probe
ADP1100-B High Voltage Differential Probe Battery powered Bandwidth: 100MHz Attenuation ratio: 10X / 100X Maximum differential voltage range: 700V Learn More	ADP1025-B High Voltage Differential Probe Battery powered Bandwidth: 25MHz Attenuation ratio: 10X / 100X Maximum differential voltage range: 700V Learn More	ADP1100-U High Voltage Differential Probe USB powered Bandwidth: 100MHz Attenuation ratio: 10X / 100X Maximum differential voltage range: 700V Learn More	ADP1025-U High Voltage Differential Probe USB powered Bandwidth: 25MHz Attenuation ratio: 10X / 100X Maximum differential voltage range: 700V Learn More

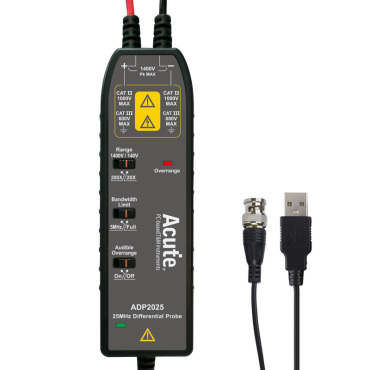

ADP2100-B High Voltage Differential Probe Battery powered Bandwidth: 100MHz Attenuation ratio: 20X / 200X Maximum differential voltage range: 1400V Learn More	ADP2025-B High Voltage Differential Probe Battery powered Bandwidth: 25MHz Attenuation ratio: 20X / 200X Maximum differential voltage range: 1400V Learn More	ADP2100-U High Voltage Differential Probe USB powered Bandwidth: 100MHz Attenuation ratio: 20X / 200X Maximum differential voltage range: 1400V Learn More	ADP2025-U High Voltage Differential Probe USB powered Bandwidth: 25MHz Attenuation ratio: 20X / 200X Maximum differential voltage range: 1400V Learn More
ADP5100-B High Voltage Differential Probe Battery powered Bandwidth: 100MHz Attenuation ratio: 50X / 500X Maximum differential voltage range: 3500V Learn More	ADP5025-B High Voltage Differential Probe Battery powered Bandwidth: 25MHz Attenuation ratio: 50X / 500X Maximum differential voltage range: 3500V Learn More	ADP5100-U High Voltage Differential Probe USB powered Bandwidth: 100MHz Attenuation ratio: 50X / 500X Maximum differential voltage range: 3500V Learn More	ADP5025-U High Voltage Differential Probe USB powered Bandwidth: 25MHz Attenuation ratio: 50X / 500X Maximum differential voltage range: 3500V Learn More

Spare Parts
SD3.0 extension board Exclusively for BusFinder; SD3.0 extension board Learn More	uSD4.0 extension board Special for BusFinder; uSD4.0 extension board Learn More	SD4.0 extension board Special for BusFinder; SD4.0 extension board (compatible with SD 3.0) Learn More	eMMC connector Exclusively for BusFinder; eMMC probe tip (with connector) Learn More
eMMC Jumper Connector Special for BusFinder; eMMC probe Tip (jumper connector) Learn More	MIPI60 adapter board MIPI 60 connector, with 2.54mm pin header test points Learn More	USB Type C adapter Provides measurement of USB3.0 Type-C CC1/CC2, SBU1/SBU2 lines Learn More	DP_Aux differential signal adapter board Process the DP_Aux signal into a single-ended signal for measurement Learn More
MSO1000/2000 series cable arrangement 40 insulated cables Length: 18.5cm/8cm Only applicable to MSO1000/2000 series models Learn More	TL3000/TL4000 series cable 40 insulated flat cables Length: 18.5 cm / 8 cm Only applicable to TL3000 / TL4000 series models Learn More	USB3.0 Cable Plug and play Can block unnecessary noise at the same time Multiple isolation coatings, stable signal Learn More	Probe Clip/Test Clip Spring-loaded probe holder with mini clip Learn More
Passive oscilloscope probe 250MHz x1/x10 600V Learn More	High voltage differential probe test hook Rated voltage/current: 1000 Volts, CAT III/3A Learn More	MCX to BNC Cable trigger line Stacking external oscilloscopes for use Learn More
