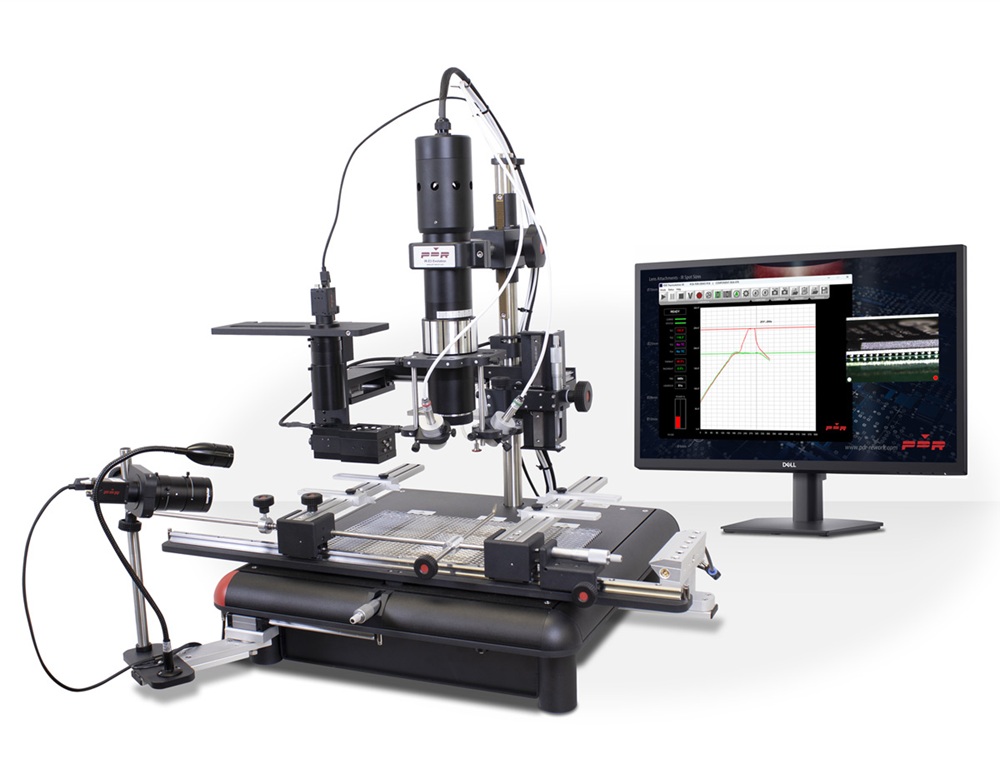

The PDR IR-E3 is a high powered system,
available with a multi-zone 2250W, 2800W or 3050W PCB preheater and is
designed to rework SMD / BGA / uBGA / QFN / LEDs on small to
medium-large PCB assemblies with upto a 18"/450mm PCB capacity. It is
loaded with advanced features delivering many benefits including the
highest performance and soldering quality available anywhere, yet it
remains simple to set up and use.
The IR-E3 system is now available in 3 models - the E3S, E3G and E3M.
Made in the United Kingdom with only the finest components for optimum
precision, the PDR IR-E3 is our top selling system and one of the best
performing BGA Rework Stations worldwide.
Applications
Desoldering, placement and soldering of all
types of surface-mounted devices (SMD)
BGA, QFN, LED, CSP, 0201, 01005
Features
Advanced Focused IR component heating
Quartz IR PCB preheating with up to 3
zones
Split Beam prism system for simultaneous
PCB/component viewing
Precision Components Pick and Placement up to
10um
Precision PCB handling
Component Nest/Flux Application
Facility
Closed Loop Non-Contact Temperature
Sensing
Advanced Automatic Thermal Process
Control
Reflow Process Observation Camera
PCB Forced Air Cooling
Technical Data
Bench Area: 1400mm (w) x 600mm (d)
Weight: 65kg
Warranty: 2 years
Voltage Frequency: 208-240 volts 50/60Hz, up
to 3KW
Top Heater Power: 150W Focused Infrared up to
Ø70mm Spot
Component Temperature Sensing: Non-Contact IR
Sensor
PCB Temperature Sensing: Non-Contact IR
Sensor
Max PCB Size: 18”/450mm
Max Component Size: 55x55mm
Min Component Size: 01005
Number of TC Channels: 4

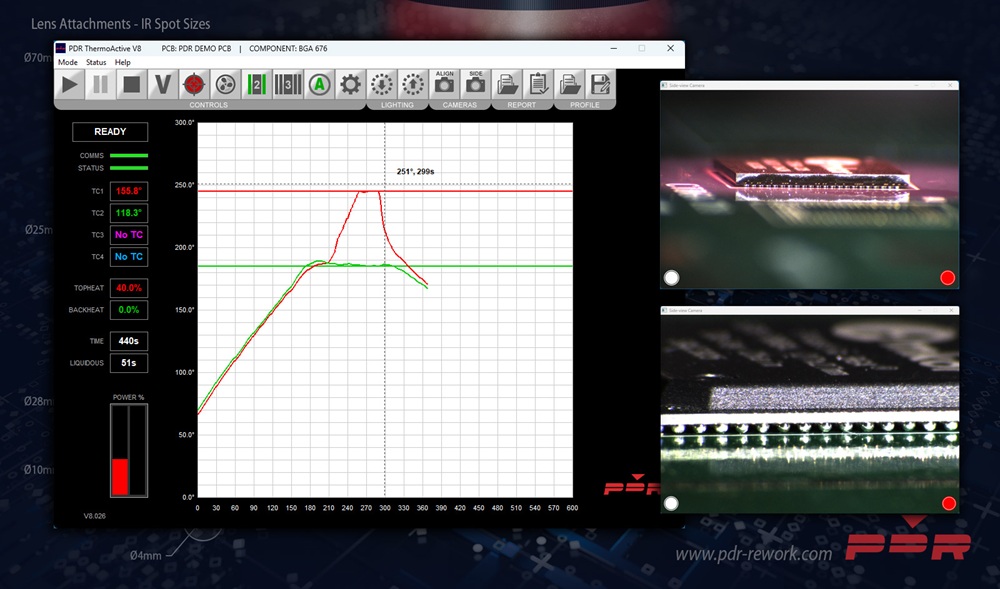

Operating Software: PDR’s Thermoactive
Software Suite suitable for Windows 8 and Windows 10
Description
The PDR IR-E3 is a high powered system,
available with a multi-zone 2250W, 2800W or 3050W PCB preheater and is
designed to rework SMD / BGA / uBGA / QFN / LEDs on small to
medium-large PCB assemblies with upto a 18"/450mm PCB capacity. It is
loaded with advanced features delivering many benefits including the
highest performance and soldering quality available anywhere, yet it
remains simple to set up and use.
The IR-E3 system is now available in 3 models - the E3S, E3G and E3M.
Made in the United Kingdom with only the finest components for optimum
precision, the PDR IR-E3 is our top selling system and one of the best
performing BGA Rework Stations worldwide.
Features
Advanced Focused IR component heating
Quartz IR PCB preheating with up to 3
zones
Split Beam prism system for simultaneous
PCB/component viewing
Precision Components Pick and Placement up to
10um
Precision PCB handling
Component Nest/Flux Application
Facility
Closed Loop Non-Contact Temperature
Sensing
Advanced Automatic Thermal Process
Control
Reflow Process Observation Camera
PCB Forced Air Cooling
Technical Data
Bench Area: 1400mm (w) x 600mm (d)
Weight: 65kg
Warranty: 2 years
Voltage Frequency: 208-240 volts 50/60Hz, up
to 3KW
Top Heater Power: 150W Focused Infrared up to
Ø70mm Spot
