| Category |
Model |
Accessories Index
|
Recommended models
|
| LCR Fixtures |
LCR-05 |
Test Fixture, 4 Wire |
LCR-800/6000/8000G Series
Test fixture for measuring axial and radial lead components
Frequency: DC to 1MHz Max. Voltage: +/- 35V |
| LCR Fixtures |
LCR-06B |
Test Fixture, 4 Wire, Kelvin Clip |
LCR-800/6000/8000G Series
Kelvin clip test lead
Frequency: DC to 1MHz Max. Voltage: +/- 45V |
| LCR Fixtures |
LCR-07 |
Test Fixture, 2 Wire, Alligator Clip |
LCR-800/6000/8000G Series
Test leads for conventional component measurement.
Useful for high impedance measurement.
Two-wire measurement applicable to low C or high R.
Frequency: DC to 1MHz
Max. Voltage: +/- 35V |
| LCR Fixtures |
LCR-08 |
Test Fixture, 4 Wire, SMD/Clip tweezers |
LCR-800/6000/8000G Series
SMD / chip tweezers
Frequency: DC to 1MHz
Max. Voltage: +/- 35V |
| LCR Fixtures |
LCR-09 |
Test Fixture, 4 Wire, SMD/Chip test fixture
(Phase out, recommand LCR-15) |
LCR-800/8000G Series
SMD / chip test fixture
Frequency: DC to 10MHz
Max. Voltage: +/- 35V
Applicable size: 0603 to 1812 |
| LCR Fixtures |
LCR-12 |
Test Fixture, 4Wire, Kelvin Clip |
LCR-8000G Series
Kelvin clip test leads with GND line.
Frequency: DC ~ 10MHz
Max. Voltage: +/- 35V
Applicable Instruments:LCR-8110G/8105G/8101G |
| LCR Fixtures |

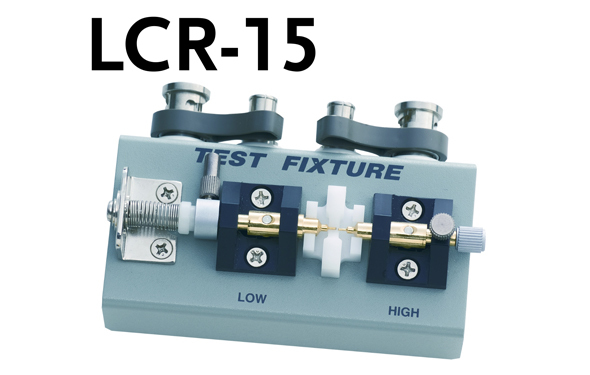

LCR-15 |
Test Fixture, 4Wire, SMD/Chip test fixture |
LCR-800/6000/8000G Series
SMD / chip test fixture
Frequency: DC to 10MHz
Max. Voltage: +/- 45V
Applicable size: 0201 to 1812 |
| LCR Fixtures |
LCR-16 |
External DC Bias Voltage box |
LCR-6000 Series
Frequency: 40Hz to 1MHz
Max. Voltage: +/- 45V |
| LCR Fixtures |
LCR-17 |
External DC Bias Current box |
LCR-6000 Series
Frequency: 40Hz to 1MHz
Max. Voltage: +/- 2.5A |
