Fastest Sweep Speed Up to 204us
|
For
measuring signals, speed is one of the
specifications to be considered. Perhaps, it is the
most important specification. GSP-9330 provides
sweep speed up to 204 μs. Users, via high speed
sweep time, can easily capture transient signals
such as Tire-pressure monitoring system (TPMS),
frequency/amplitude modulation signals, Bluetooth
frequency hopping signals, tuned oscillator or other
interfering signals under ISM Band.
|
|

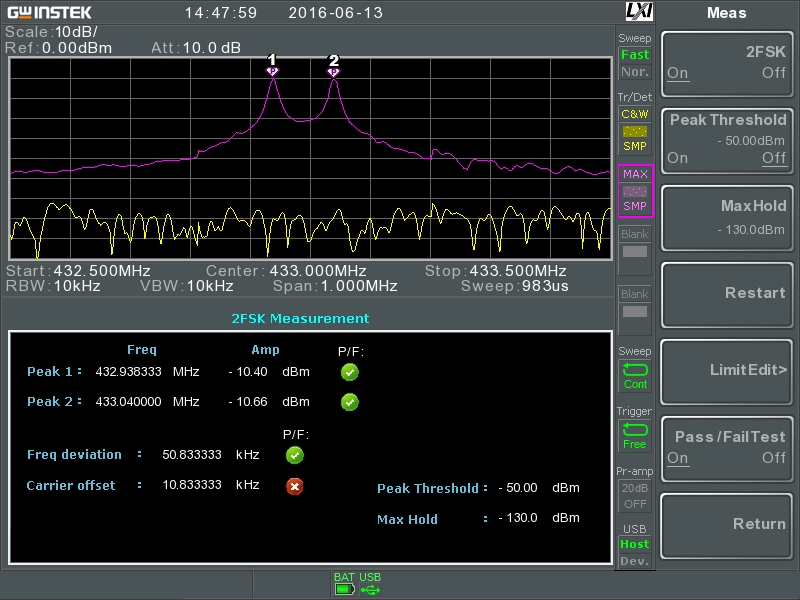

Modulation Signal Analysis and Processing
|
The
keys to handling modulated signals are fast sweep
time and signal demodulation function. In addition
to the analog AM/FM demodulation and analysis
function, GSP-9330 also provides ASK/FSK digital
signal demodulation capability. For the
widely-utilized, low-cost and low power consumption
2FSK modulation signals, GSP-9330 also provides the
complete test and analysis function to address the
requirements.
|
EMC Pretest Solution
|
GSP-9330 can meet customers’ EMC pretest
requirements on the product development and
verification stages. Users can detect and resolve
problems at the early product development stage that
can save time and money for product development and
verification fee. As a result, users can expedite
the process of products launch. GSP-9330 has the
built-in EMI dedicated 200/9 k/120 k/1 MHz filter,
20 dB low noise amplifier and Quasi-Peak/Average
detection mode to conduct radiation and conduction
tests after collocating with the probe set.
GKT-008, the radiation test probe set, provides a
complete near field test probe set to simplify the
complex measurement procedures and to simulate
3m/10m far field tests from the labs. Using GKT-008
can greatly save engineers’ debugging time and the
money for going back and forth to the labs. GKT-008
can collocate with the Tracking Generator function
of GSP-9330 to conductEMSpretests.
For conduction tests, GKT-008 can collocate with
LISN and Isolated Transformer to conduct
electromagnetic conduction tests. If users concern
EUT’s large voltage variation or complexity,
applying a Transient Limiter will make test
equipment safer.
|
