GSP-9300B Spectrum Analyzer
Description
Practical,
Affordable and Never Careless

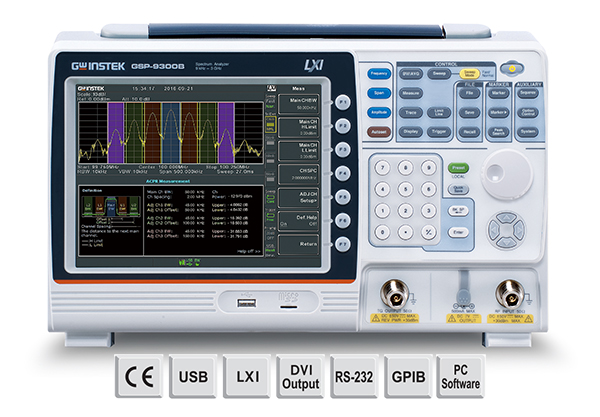

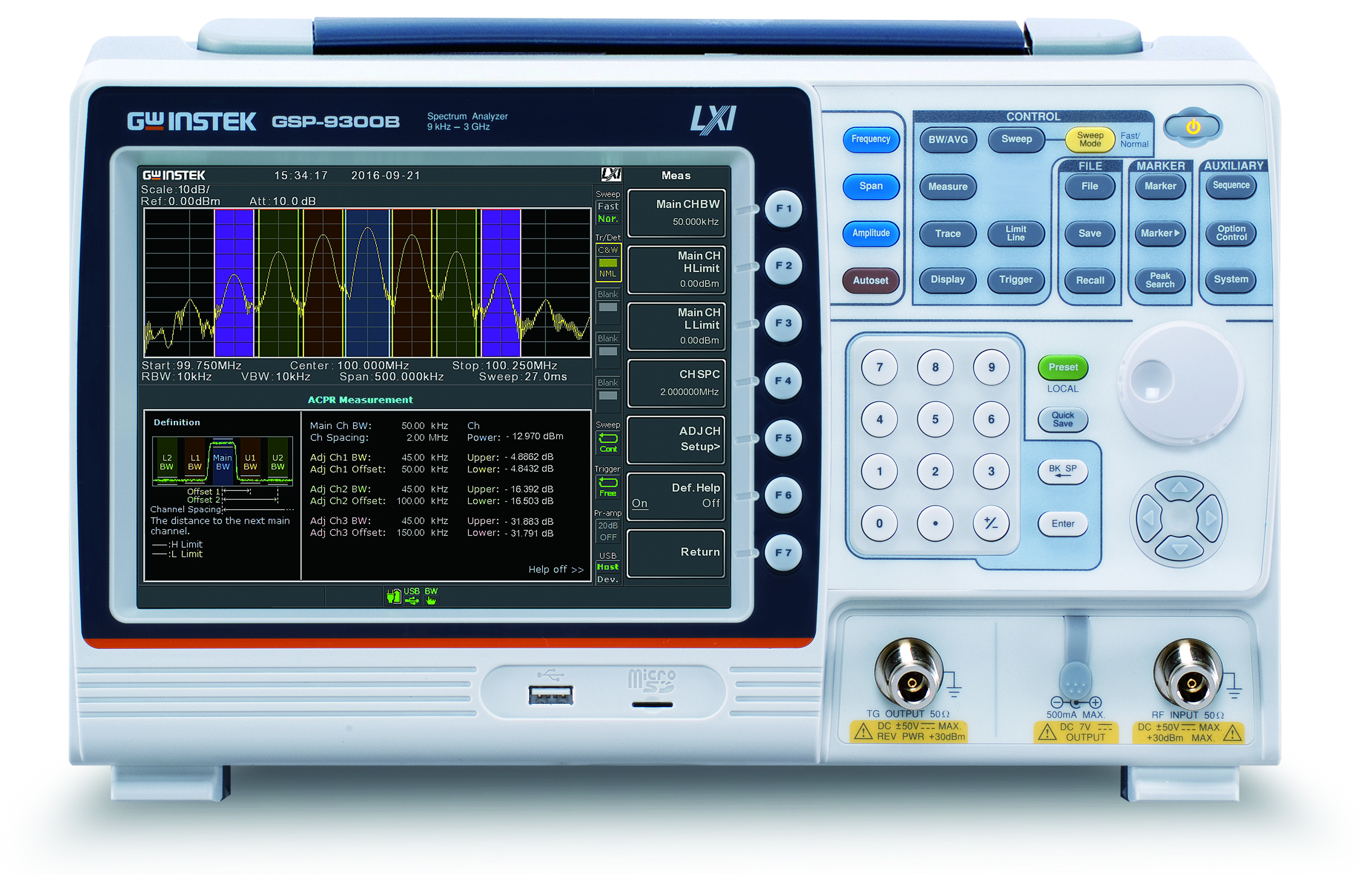

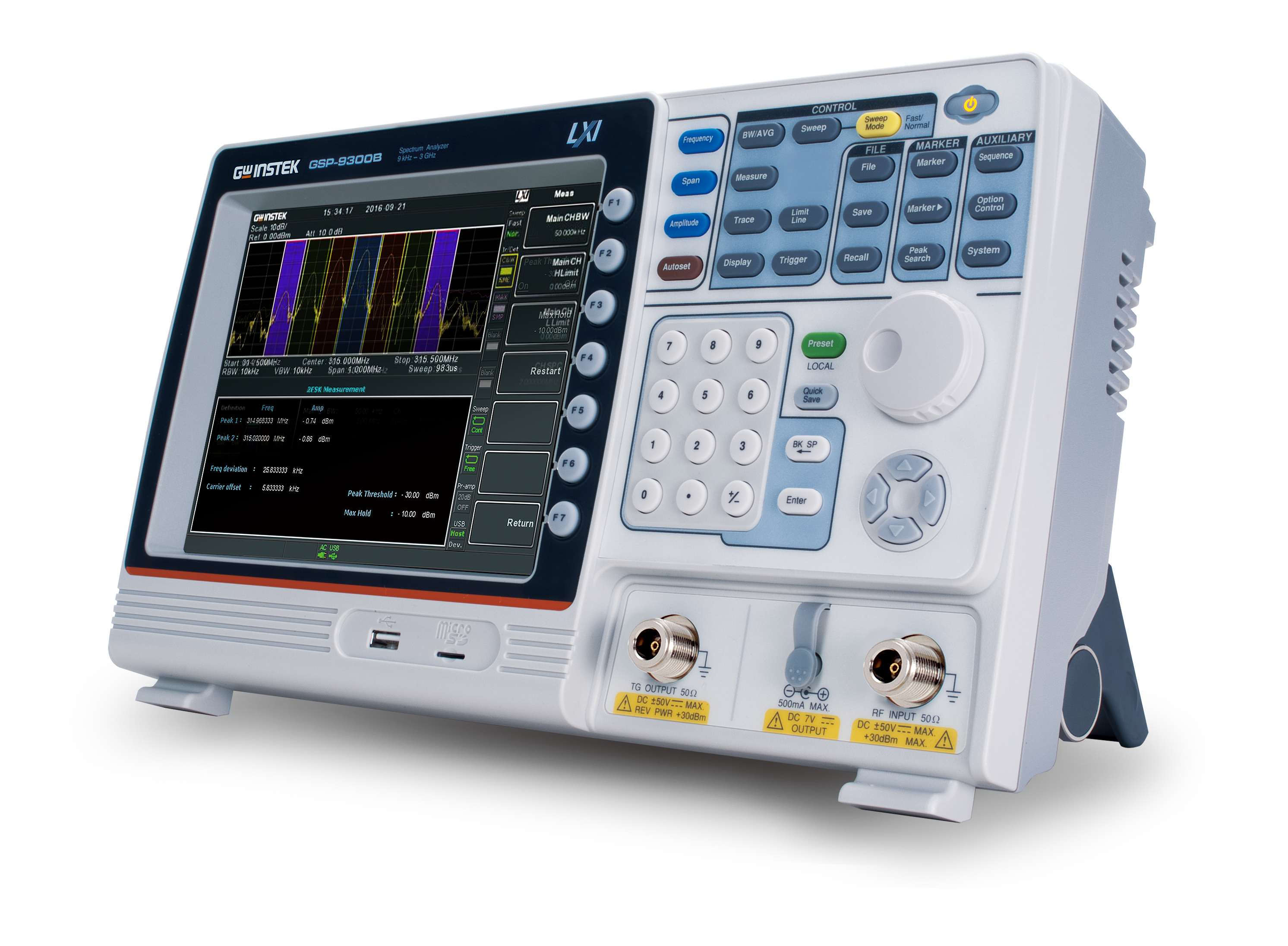

GSP-9300B is a 3GHz spectrum analyzer to meet basic RF measurement
requirements. It provides the frequency stability of 0.025ppm; the
aging rate of 1ppm/year; a built-in preamplifier; the base noise of
-149dBm/Hz, and more than 20 measurement applications, including
AM/FM modulation signal analysis, signal channel analysis, and CATV
parameter test. While collocating with TG option, GSP-9300B can
conduct frequency response or power linearity tests for components.
For monitoring signals, GSP-9300B provides Topographic display mode,
which is capable of distinguishing continuous or random signals by
using color temperature. Spectrogram mode provides a time axis on
spectrum display that allows users to observe signal variations
based upon the reference of time. Split window mode allows different
parameter settings for each display window. Additionally, GSP-9300B
also provides user-friendly user interfaces such as display mode,
help, multi-languages, and fast data logging, etc. Interfaces and

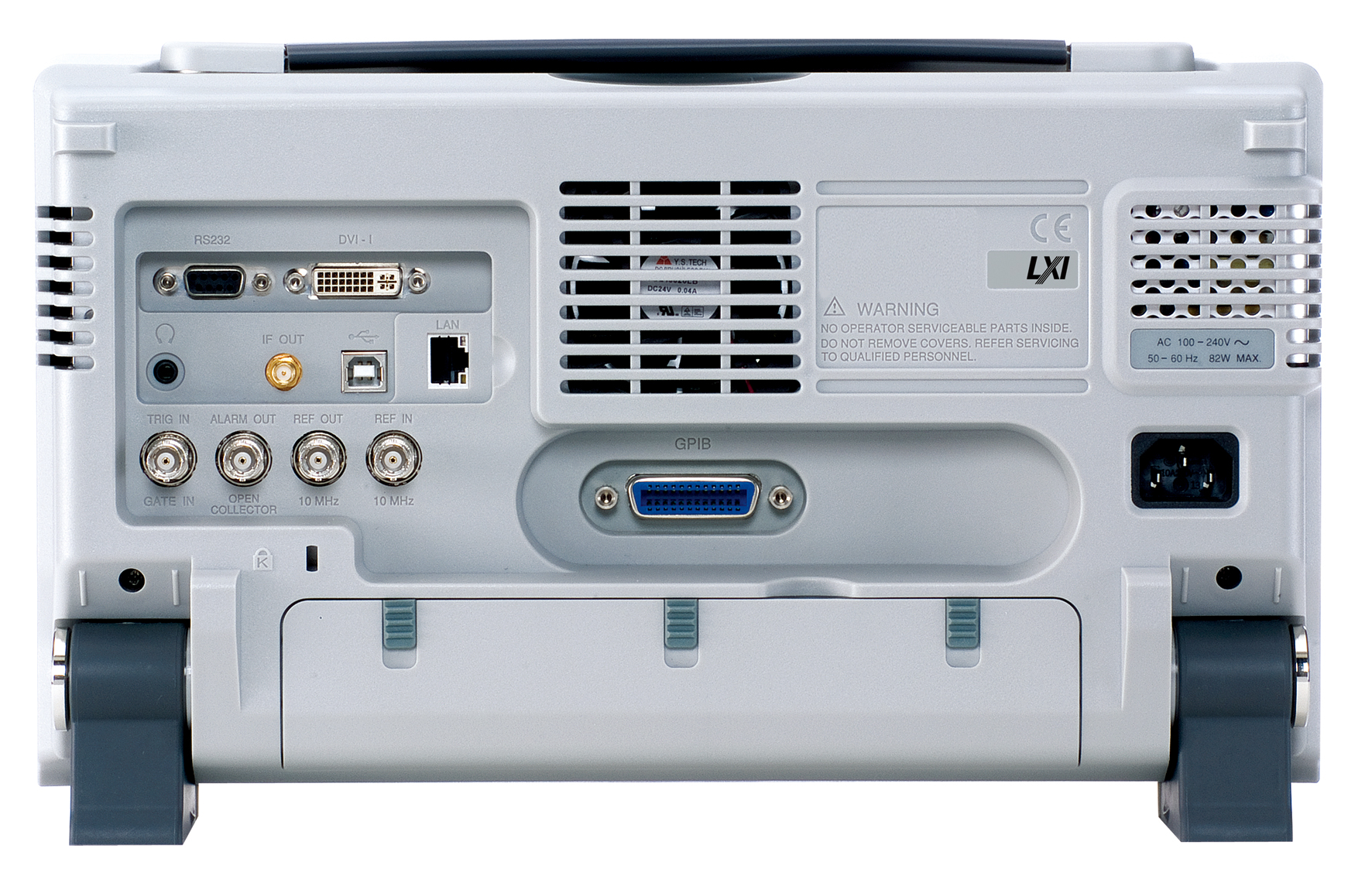

software include USB/RS-232/LXI/MicroSD/GPIB (option)/DVI output and
dedicated PC software IVI Driver.
GSP-9300B, with its unique features, including auto wake-Up,
sequence function, and limit line testing, is specially designed to
meet the requirements of production lines. The patent design of heat
conduction allows GSP-9300B to substantially reduce the warm-up time
so as to expedite production processes. Options include tracking
generator, carrying
bag, battery
module,
EMI antenna set and rack
accessories. The compact design of GSP-9300B satisfies either field
testing or the integration of automatic testing systems.
To sum up, GSP-9300B
is a stable, light and all-purpose test equipment, which is the most
ideal choice for the educational market, production line, and
general signal monitoring applications, etc. Most important, the
pricing of GSP-9300B is beyond your imagination and it is the number
one choice for users with budget considerations.
Description
Practical,
Affordable and Never Careless
GSP-9300B is a 3GHz spectrum analyzer to meet basic RF measurement
requirements. It provides the frequency stability of 0.025ppm; the
aging rate of 1ppm/year; a built-in preamplifier; the base noise of
-149dBm/Hz, and more than 20 measurement applications, including
AM/FM modulation signal analysis, signal channel analysis, and CATV
parameter test. While collocating with TG option, GSP-9300B can
conduct frequency response or power linearity tests for components.
For monitoring signals, GSP-9300B provides Topographic display mode,
which is capable of distinguishing continuous or random signals by
using color temperature. Spectrogram mode provides a time axis on
spectrum display that allows users to observe signal variations
based upon the reference of time. Split window mode allows different
parameter settings for each display window. Additionally, GSP-9300B
also provides user-friendly user interfaces such as display mode,
help, multi-languages, and fast data logging, etc. Interfaces and
software include USB/RS-232/LXI/MicroSD/GPIB (option)/DVI output and
dedicated PC software IVI Driver.
GSP-9300B, with its unique features, including auto wake-Up,
sequence function, and limit line testing, is specially designed to
meet the requirements of production lines. The patent design of heat
conduction allows GSP-9300B to substantially reduce the warm-up time
so as to expedite production processes. Options include tracking
generator, carrying bag, battery module, EMI antenna set and rack
accessories. The compact design of GSP-9300B satisfies either field
testing or the integration of automatic testing systems.
To sum up, GSP-9300B is a stable, light and all-purpose test
equipment, which is the most ideal choice for the educational
market, production line, and general signal monitoring applications,
etc. Most important, the pricing of GSP-9300B is beyond your
imagination and it is the number one choice for users with budget
considerations.
Features
- Frequency Range: 9kHz ~ 3 GHz
- 0.025ppm Frequency Stability and 1ppm aging
Rate
- Built-in Preamplifier, 50dB Attenuator, and
Sequence Function
- RBW: 1Hz ~ 1MHz
- Sensitivity: -149dBm/Hz (@PreAmp on)
- Built-in AM/FM Demodulation & Analysis
- Built-in P1dB point, Harmonic, Channel Power,
N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise
Marker, Frequency Counter, Time Domain Power, Gated
Sweep
- Built-in Spectrogram, Topographic and
Dual-View Display Modes
- Remote Control Interface: LAN, USB,
RS-232
- Options: Tracking Generator, GPIB
Interface
