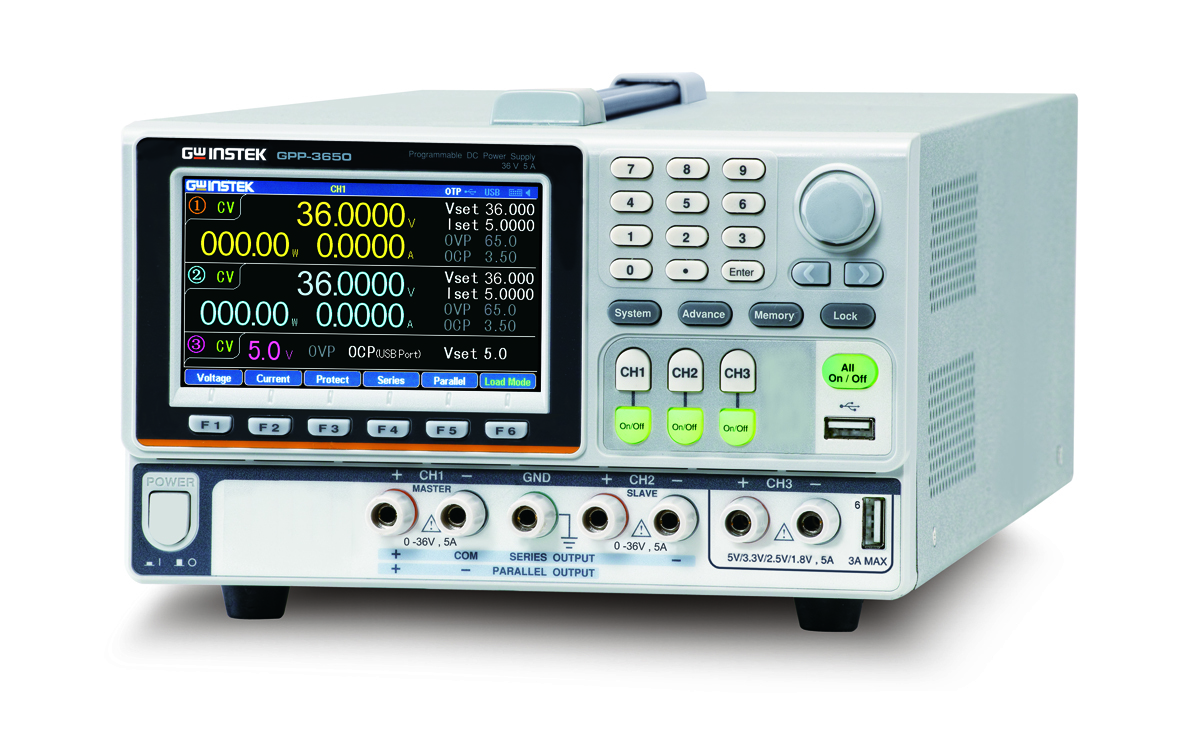

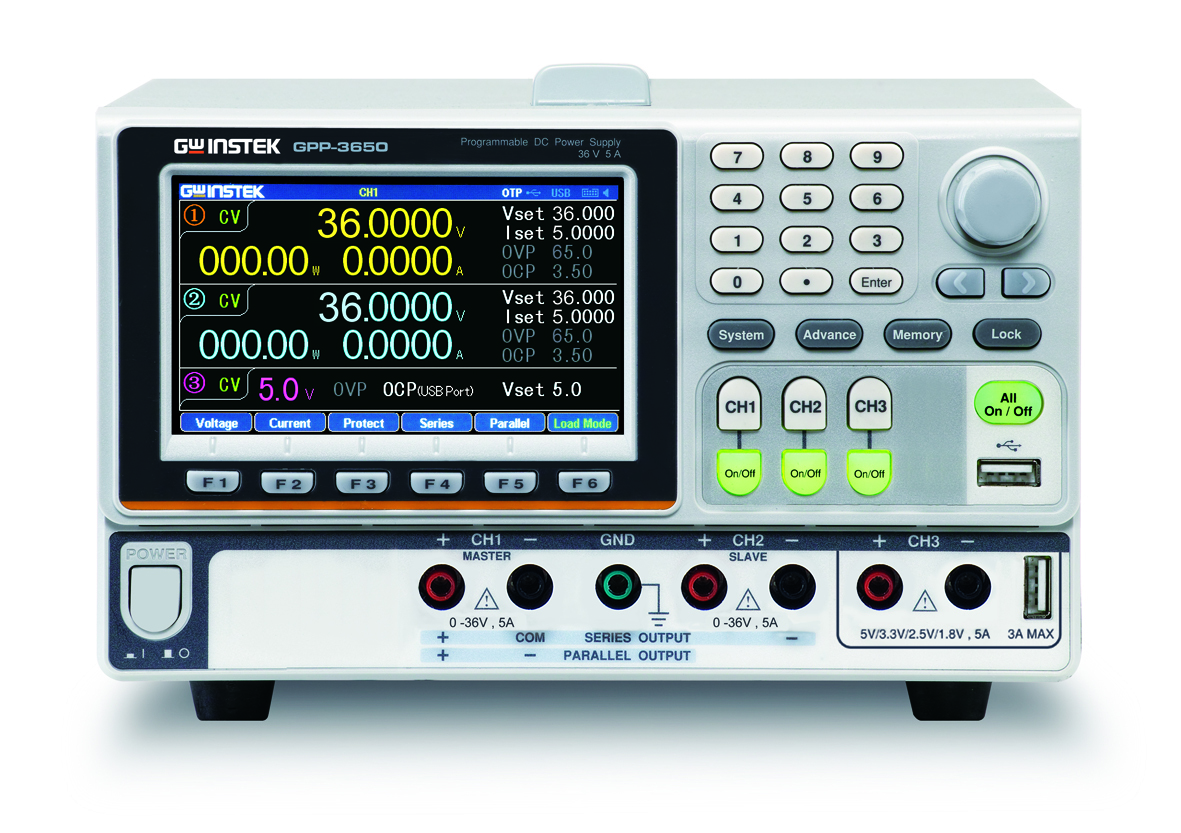

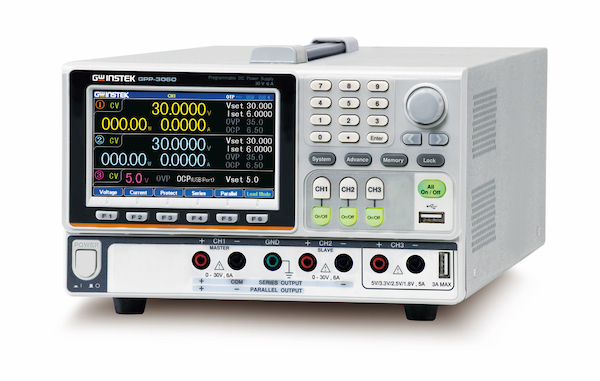

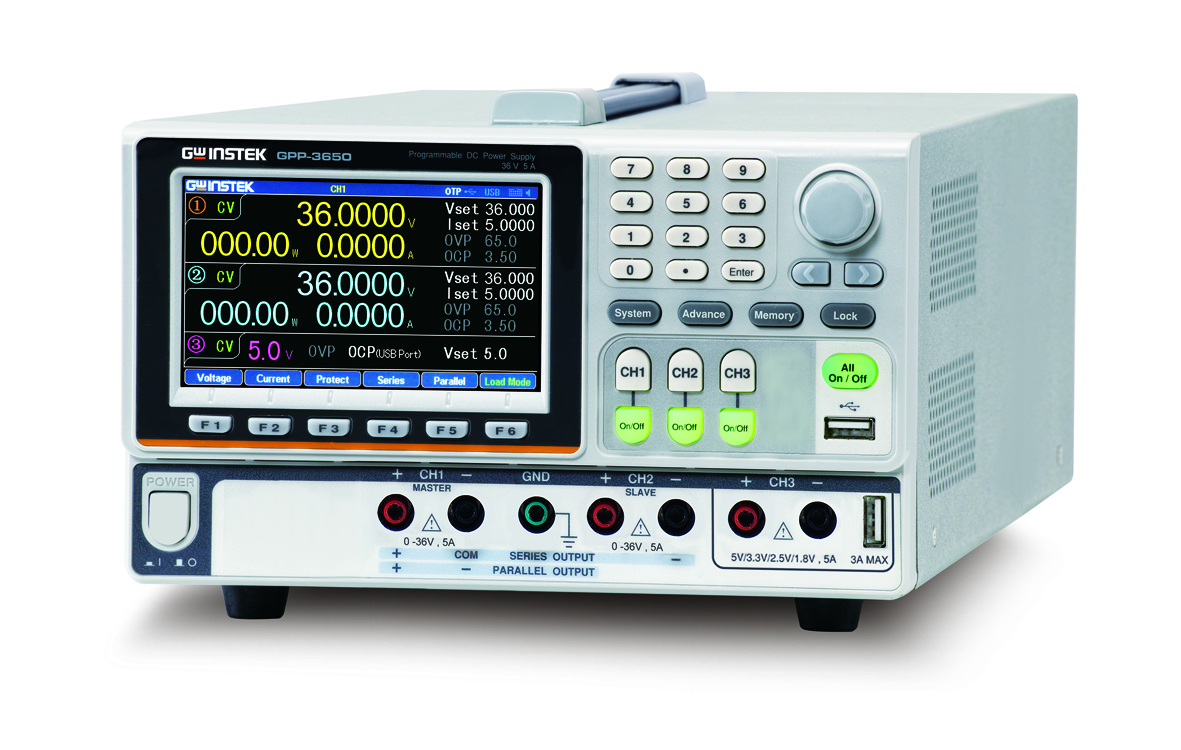

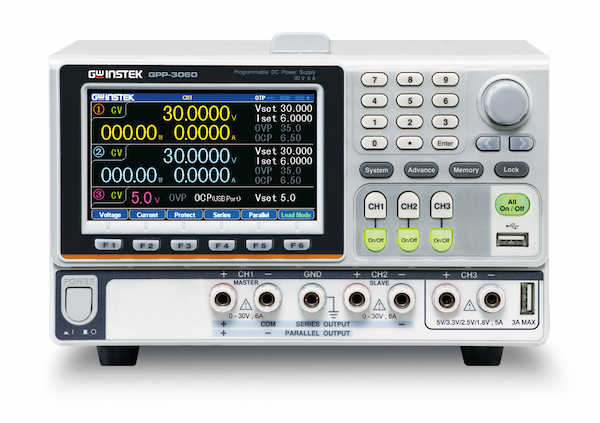

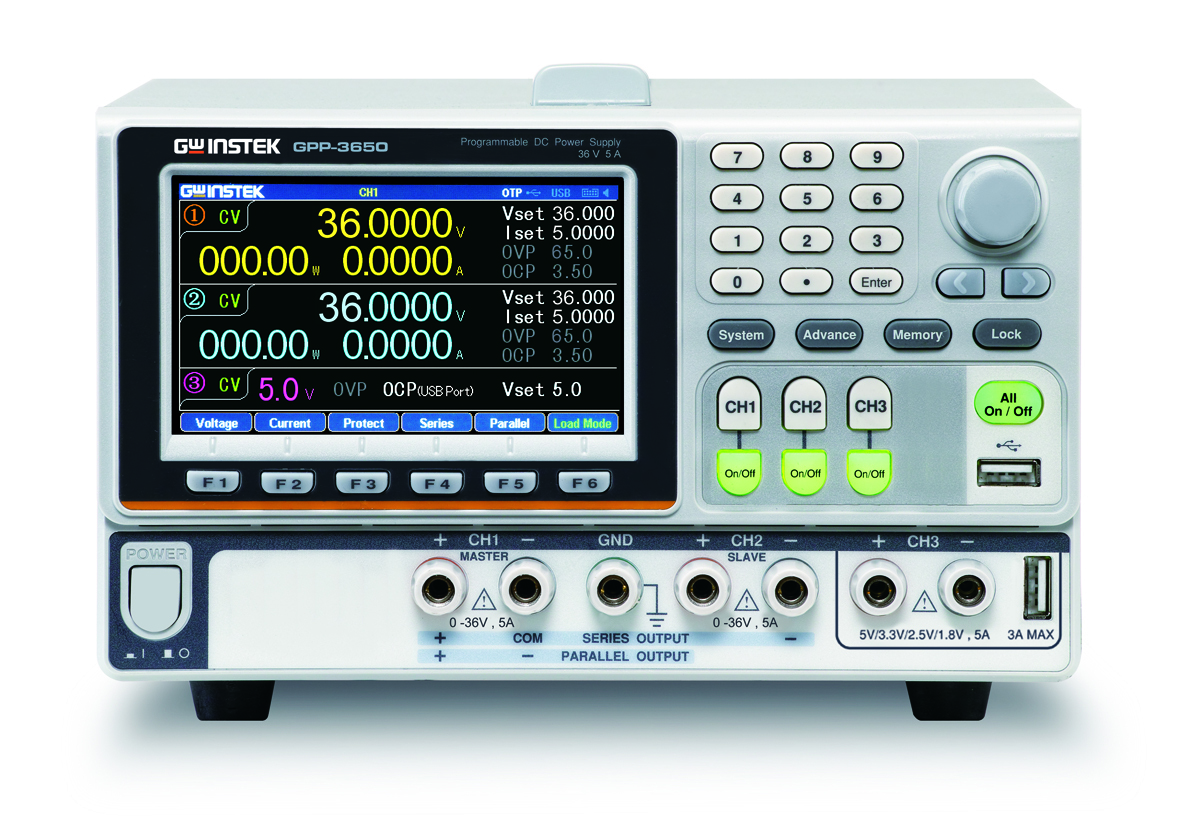

GPP-3060/6030/3650 Triple-Channel
Programmable DC Power Supply
Description
GPP-3060/6030/3650 triple-channel programmable DC power supplies are
extension models of the GPP-X323 series. The maximum output power of
these three models is 385W.
GPP-3060 supports CH1/CH2: 0 ~ 30V / 0 ~ 6A output; GPP-6030
supports CH1/CH2: 0 ~ 60V / 0 ~ 3A output; GPP-3650 supports
CH1/CH2: 0 ~ 36V / 0 ~5A output; CH3 of three models supports 1.8V,
2.5V, 3.3V, 5.0V/5A.
GPP-3060/6030/3650 inherit the high program resolution (1mV/0.1mA)
and read back resolution (0.1mV/0.1mA) of the GPP series with
low-ripple noise characteristics ≦1mVrms/≦2mArms and ≦100µs output
transient recovery ability. An independent output on-off switch is
provided for each channel.
The unique load function of the GPP series can arbitrarily set
CH1/CH2 as power supply or load function. For example, one channel
is set as power output, and the other channel is set as load
function to consume the power of the DUT to satisfy simple battery
charging and discharging or load characteristic test by a single
power supply.
Applications
- Scientific research and experimental
testing
- Battery charging and discharging test
- Electronic parts test
- 3C electronic product test
Features
- 4.3”TFT LCD Display
- Setting resolution: 1mV / 0.1mA; read back
resolution: 0.1mV / 0.1mA
- Low ripple noise: ≦1mVrms/ ≦2mArms
- Transient response time: ≦100µS
- Load function (CC, CV, CR mode)
- Tracking series and parallel function without
additional external wiring
- Utilizing hardware to realize over voltage
protection / over current protection / over temperature
protection
- Delay function / output monitoring function /
output recorder function
- Supports setting value, measurement value and
output waveform display
- Sequential output function and built-in 8
template waveforms
- The output recorder function records the
output voltage & current parameters with a minimum recording
interval of 1 second
- Provides 10 sets of memory for each
sequence/delay/recorder/panel setting condition
- Supports a USB (Type A) output
terminal
- Intelligent temperature control fan
effectively reduces noise

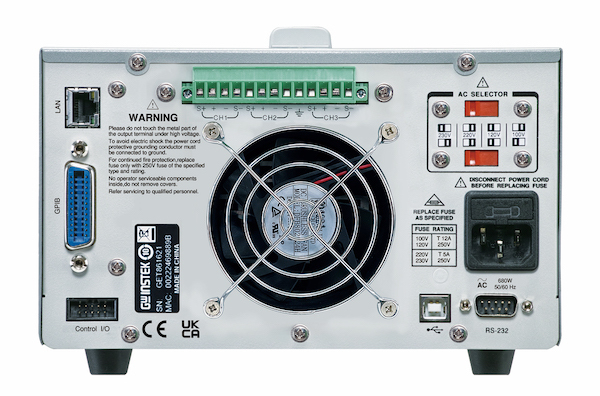

- Standard: RS-232, USB, LAN, Ext I/O ;
Optional(manufacturer installed only): GPIB
