GW Instek

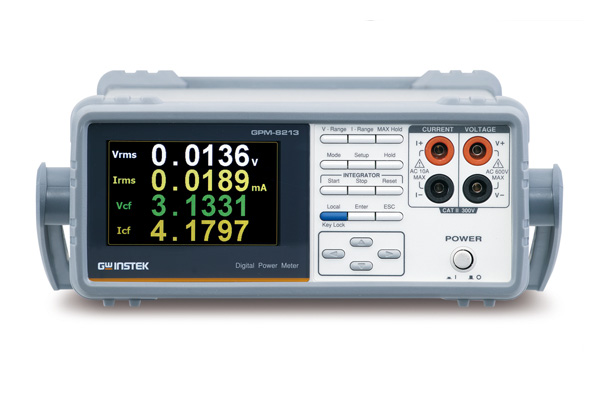

GPM-8213 power meter is designed specifically for single-phase
(1P/2W) AC power supply’s power measurements. Powerful features,
including 4” TFT LCD, five-digit measurement display, 19 power
measurement parameters, integral measurement function, high-accuracy
voltage/current/power measurement capabilities, front/rear panel
input terminals, and various communications ports, are to facilitate
users with clear, convenient, and accurate power measurements.
Description
GW Instek
GPM-8213 power meter is designed specifically for single-phase
(1P/2W) AC power supply’s power measurements. Powerful features,
including 4” TFT LCD, five-digit measurement display, 19 power
measurement parameters, integral measurement function, high-accuracy
voltage/current/power measurement capabilities, front/rear panel
input terminals, and various communications ports, are to facilitate
users with clear, convenient, and accurate power measurements.
Features
4” TFT LCD
Two data display modes
Standard : two major measurement items + six
secondary measurement items
Simple : displaying test data of four
different measurement items
Listed as an accepted device for SPEC Power®
testing
Met the requirement of IEC 62301 power
measurement
Voltage/ current test frequency bandwidth :
DC~6kHz
Watt resolution : 1mW
Lowest current range : 5mA, resolution :
0.1uA
Current/voltage measurements reach CF=3 for
distorted wave and CF=6 for half range
W-h (power vs time)/A-h (current vs time)
integration function
