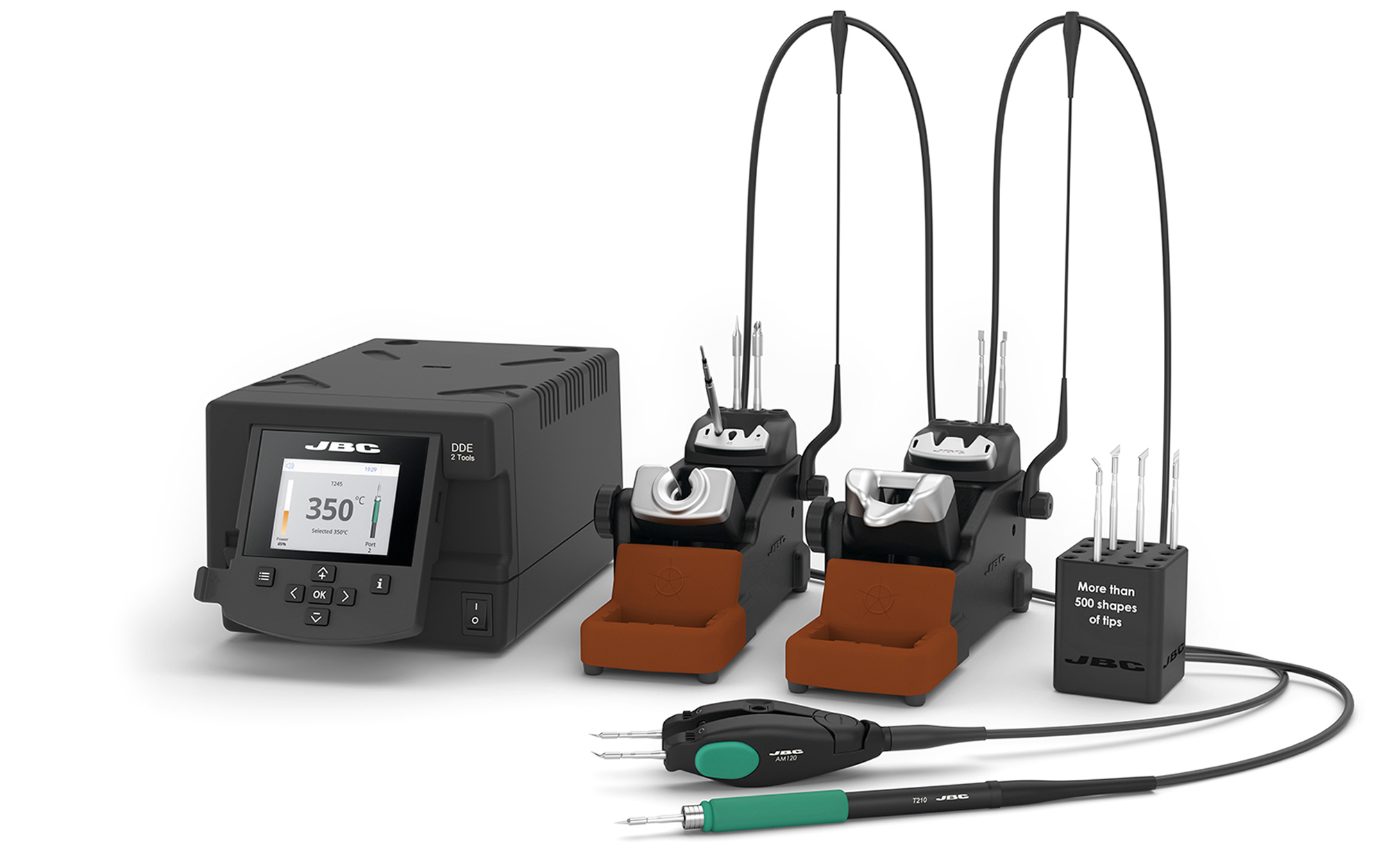

DDPE Station 2-Tool Precision Rework
Description
This station is the perfect solution for fast and precise SMD rework of chip components and small outline ICs.
It provides all the advantages of the JBC Most Efficient Soldering System. Includes:
- DDE 2-Tool Control Unit manages up to two tools simultaneously and is fully compatible with 10 different JBC tools.
- T210 Precision Handle and AM120 Adjustable Micro Tweezers.
- T210 works with C210 Cartridge Range and AM120 with C120 Cartridge Range.
- Two stands with a complete Tip Cleaning System, Quick Cartridge Exchanger and a Cartridge Holder to store up to four cartridges.
- SCH Cartridge Holder to store up to 16 cartridges and tips nearby.
Description
This station is the perfect solution for fast and precise SMD rework of chip components and small outline ICs.
It provides all the advantages of the JBC Most Efficient Soldering System. Includes:
- DDE 2-Tool Control Unit manages up to two tools simultaneously and is fully compatible with 10 different JBC tools.
- T210 Precision Handle and AM120 Adjustable Micro Tweezers.
- T210 works with C210 Cartridge Range and AM120 with C120 Cartridge Range.
- Two stands with a complete Tip Cleaning System, Quick Cartridge Exchanger and a Cartridge Holder to store up to four cartridges.
- SCH Cartridge Holder to store up to 16 cartridges and tips nearby.
Specifications
| Specification |
| Nominal power |
370W |
| Peak power (Tool) |
150W per tool |
| Selectable temperature |
90 to 450ºC / 190 to 840ºF |
| Idle temp. stability (still air) |
±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F |
| Temperature accuracy |
±3% |
| Temp. adjustment |
±50ºC / ±90ºF Through station menu setting |
| Tip-to-ground resistance |
<2 ohms |
| Tip-to-ground voltage |
<2 mV RMS |
| USB-A |
Firmware update Graphics and profiles |
| USB-B |
PC communications |
| FAE / Robot connector |
Remote control or FAE Fume Extractor connection |
| Weight and Dimensions |
| Control Unit |
232 x 148 x 120 mm / 7.16 kg. 9.13 x 5.83 x 4.72 in / 15.78 lb. |
| Package |
545 x 345 x 275 mm / 10.40 kg. 21.46 x 13.58 x 10.83 in / 22.93 lb. |
