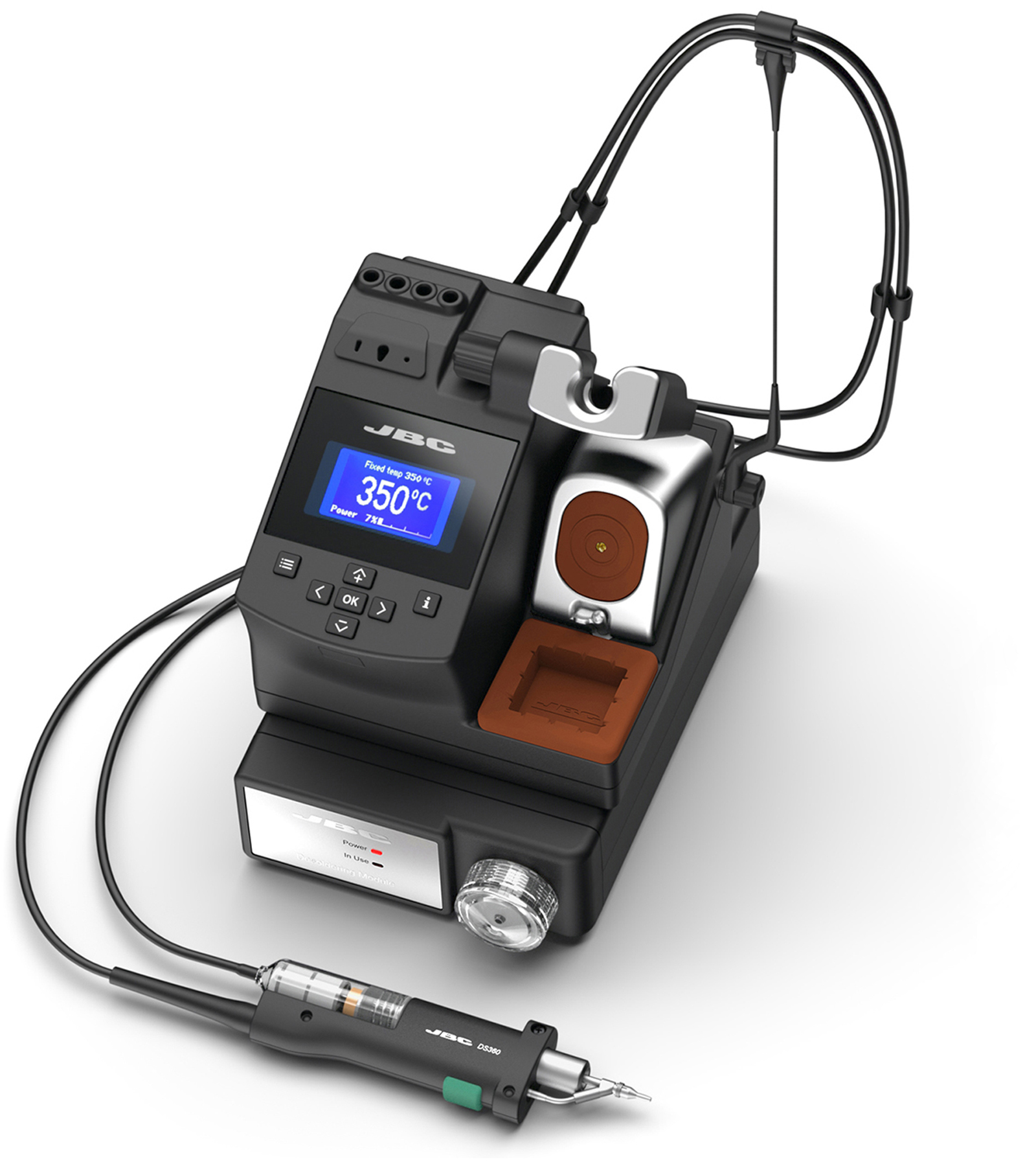

CS Station Precision Desoldering
Description
Ideal for desoldering small THT components and SMD pad cleaning.
It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:
- JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times
- Complete Tip Cleaning System and Tip Holder.
- Connectivity:
- Fume Extractor
- Data Download
- Software Updates
- Traceability
- Includes MS Electric Desoldering Module and DS360 Micro Desoldering Iron that works with our wide range of C360 Tips.
Description
Ideal for desoldering small THT components and SMD pad cleaning.
It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:
- JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times
- Complete Tip Cleaning System and Tip Holder.
- Connectivity:
- Fume Extractor
- Data Download
- Software Updates
- Traceability
- Includes MS Electric Desoldering Module and DS360 Micro Desoldering Iron that works with our wide range of C360 Tips.
Specifications
| Specification
|
| Peak power |
40W - 23.5V |
| Selectable temperature |
90 to 450ºC / 190 to 840ºF |
| Vacuum |
75% / 570 mmHg / 22.4 inHg |
| Flow rate |
9 SLPM |
| Temperature accuracy |
±3% |
| ESD safe |
Meet ANSI/ESD S20.20-2021 |
| Equipotential bonding |
Connection to EPA |
| Tip-to-ground resistance |
<2 ohms |
| Tip-to-ground voltage |
<20 mV RMS |
| USB-B |
PC communications |
| FAE / Robot connector |
Remote control or FAE Fume Extractor connection |
| Weight and Dimensions
|
| Control Unit |
170 x 176 x 145 mm / 4.00 kg.
6.69 x 6.93 x 5.71 in / 8.82 lb. |
| Package |
495 x 295 x 255 mm / 5.90 kg.
19.49 x 11.61 x 10.04 in / 13.01 lb. |
