JBC

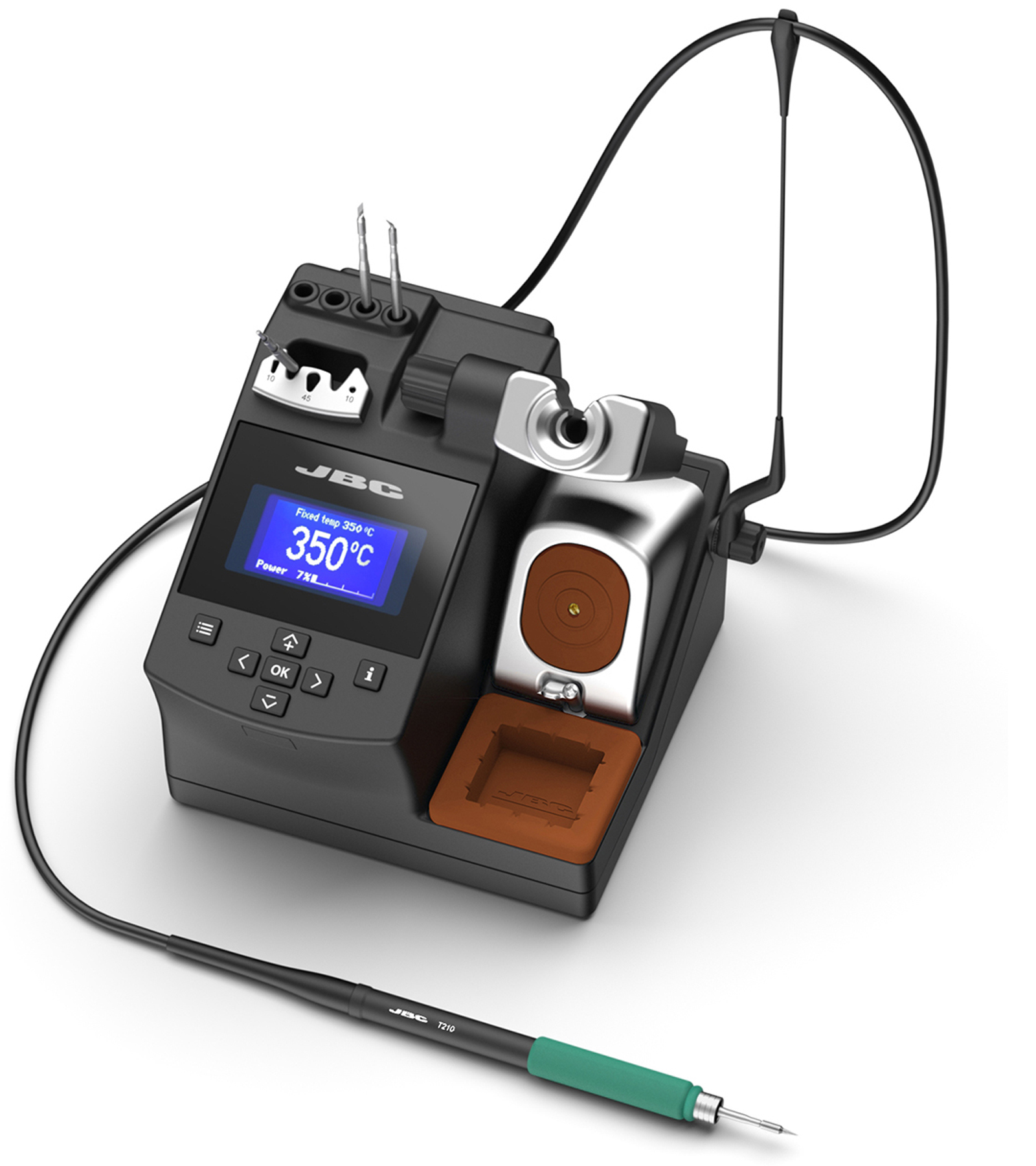

CDS Station Precision Soldering
Description

Accuracy is the right word!

Ideal for soldering SMD. It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:

  • JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times.
  • Complete Tip Cleaning System, with exclusive fast and safe Cartridge Exchanger.
  • Connectivity:
    - Fume Extractor
    - Data Download
    - Software Updates
    - Traceability
  • Includes T210 Precision Handle that works with our wide range of C210 Cartridges.

Description

Accuracy is the right word!

Ideal for soldering SMD. It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:

  • JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times.
  • Complete Tip Cleaning System, with exclusive fast and safe Cartridge Exchanger.
  • Connectivity:
    - Fume Extractor
    - Data Download
    - Software Updates
    - Traceability
  • Includes T210 Precision Handle that works with our wide range of C210 Cartridges.
Specifications
Specification
Peak power (Tool) 40W
Selectable temperature 90 to 450ºC / 190 to 840ºF
Idle temp. stability (still air) ±1.5ºC - ±3ºF (Meets and exceeds IPC J-STD-001)
Temperature accuracy ±3 % (Using reference cartridge)
Temp. adjustment ±50ºC / ±90ºF (Through station menu setting)
Tip-to-ground resistance <2 ohms
Tip-to-ground voltage <2 mV RMS
USB-B PC communications
FAE / Robot connector Remote control or FAE Fume Extractor connection
Earthing fuse F 1.25A
ESD safe Meet ANSI/ESD S20.20-2021
Weight and Dimensions
Control Unit 170 x 176 x 145 mm / 2.70 kg.
6.69 x 6.93 x 5.71 in / 5.95 lb.
Package 234 x 234 x 258 mm / 3.27 kg.
9.21 x 9.21 x 10.16 in / 7.21 lb.


Specifications
Specification
Peak power (Tool) 40W
Selectable temperature 90 to 450ºC / 190 to 840ºF
Idle temp. stability (still air) ±1.5ºC - ±3ºF (Meets and exceeds IPC J-STD-001)
Temperature accuracy ±3 % (Using reference cartridge)
Temp. adjustment ±50ºC / ±90ºF (Through station menu setting)
Tip-to-ground resistance <2 ohms
Tip-to-ground voltage <2 mV RMS
USB-B PC communications
FAE / Robot connector Remote control or FAE Fume Extractor connection
Earthing fuse F 1.25A
ESD safe Meet ANSI/ESD S20.20-2021
Weight and Dimensions
Control Unit 170 x 176 x 145 mm / 2.70 kg.
6.69 x 6.93 x 5.71 in / 5.95 lb.
Package 234 x 234 x 258 mm / 3.27 kg.
9.21 x 9.21 x 10.16 in / 7.21 lb.
