Description
Today, servers with
advanced AI functions process tremendous amounts of data under the
high-speed computing architecture of 2 CPUs + 8 GPUs.
AI servers require a huge amount of power to maintain high-speed
computing! In order to meet this demand, the power, density and
efficiency of server power supplies have been greatly improved. In
order to meet this demand, GW Instek developed the brand new
flagship model ASR-6000 series to meet customer needs.

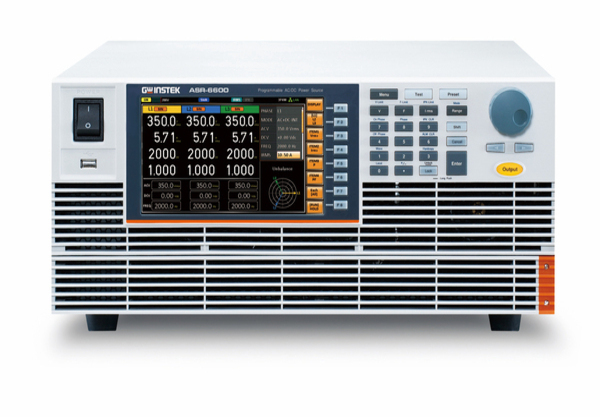

ASR-6000 has the ability to emulate more diverse power
environment changes, such as balanced three-phase and unbalanced
three-phase, phase loss, and features multi-channel output function
can test up to three DUTs at the same time, programmable output
impedance adjustment, and built-in over 40 types of arbitrary
waveform outputs. The invincible launch of GW Instek flagship model
ASR-6000 demonstrates that GW Instek can provide a complete test
solution for high-power AC sources. ASR-6000 is the MVP of GW Instek
power sources.
ASR-6000 main application
Server/communication power supply manufacturers
3.6 kVA to 22 kVA On-board charger
Uninterruptible power supply system (UPS)
AC three-phase motor control and protection devices
Military industry, scientific research, education sectors
Aerospace Equipment Testing
Description
The GPE-3060/6030
launched by GW Instek are high-resolution linear DC power supplies.
The primary aim is to replace the existing GPC-3060D/ 6030D models.
The GPE-3060/6030 deliver 385 watts of output power and feature
three independent isolated output channels. The GPE-3060 offers
CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports
CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3
outputs of 5.0V at 5A.
With respect to high program resolution, GPE-3060 provides 10mV/2mA
and GPE-6030 offers 20mV/1mA. GPE-3060/6030 adopts a new hybrid
power supply design, which can save 13% of power consumption
compared with the power consumption of the conventional linear power
supplies. The volume and weight are significantly reduced in this
series.
Features
- Adopts compound semiconductor silicon carbide
(SiC) technology to create a 4U 6 kVA high-performance AC/DC
power source with high power density
- AC input supports single-phase and
three-phase, phase voltage 200 V to 240 V ±10% (Delta or Y
connection)
- 10 output modes including external input
signal frequency and mains synchronization (SYNC), external
voltage controlled internal amplifier output (VCA)
- Multi-channel output function
- Supports 1P2W, 1P3W, and 3P4W output
- AC maximum output phase voltage: 350 Vrms;
line voltage: 700 Vrms
- Frequency range:
– AC Mode: 15.00 Hz to 2000.0 Hz

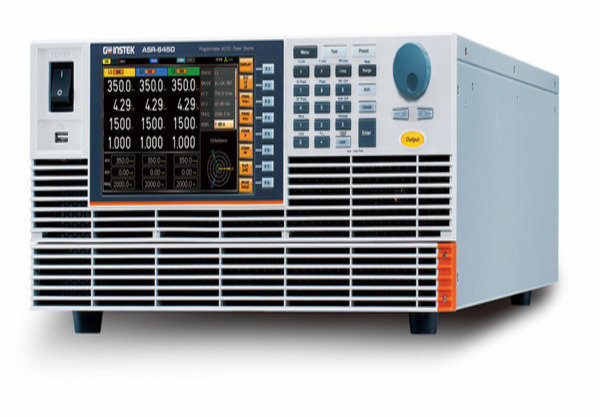

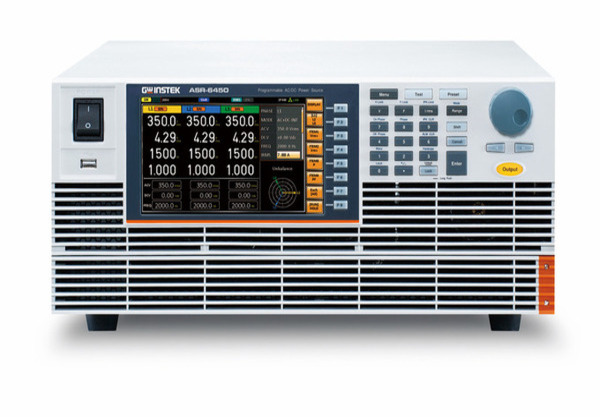

– AC+DC Mode: 1.00 Hz to 2000.0 Hz (Stand-alone unit
ASR-6450/6600)
– Parallel Rack Type: highest frequency de-rating to
1000.0 Hz (9 kVA to 18 kVA)
– De-rating to 550.0 Hz (24 kVA to 36 kVA)
- AC balanced and unbalanced three-phase, phase
loss output functions
- Programmable output impedance
adjustment
- Dual-channel voltage/current output
monitoring function
- Voltage output rise time can be adjusted in
three ranges
- Supports sequence editing and emulation
output mode
- Powerful arbitrary waveform editing and
output function capable of editing and outputting tens of
thousands of waveforms
- Advanced web server control supporting data
acquisition function
- 100th order harmonic measurement
function

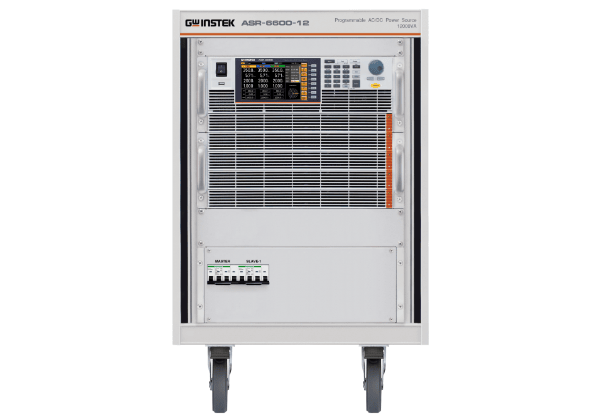

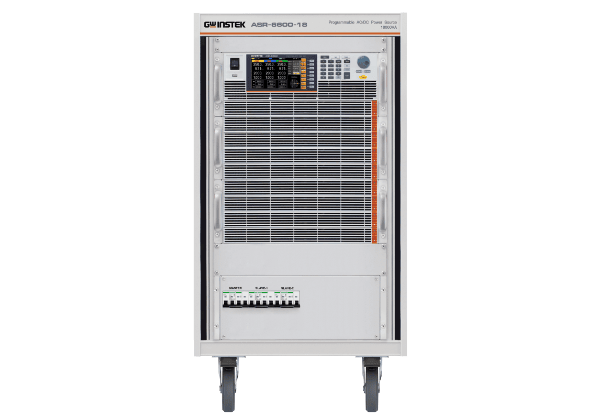

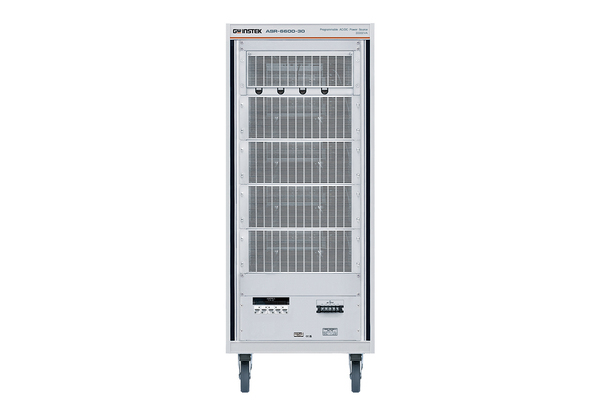

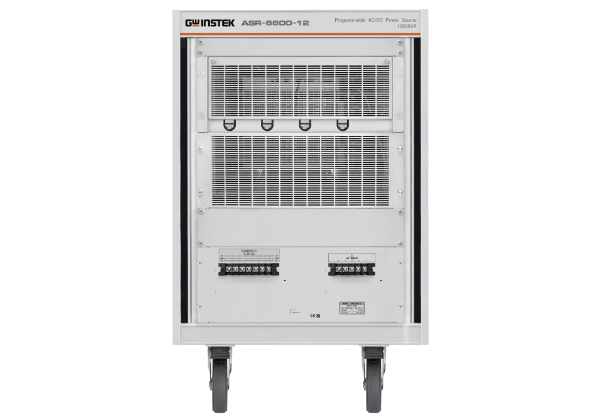

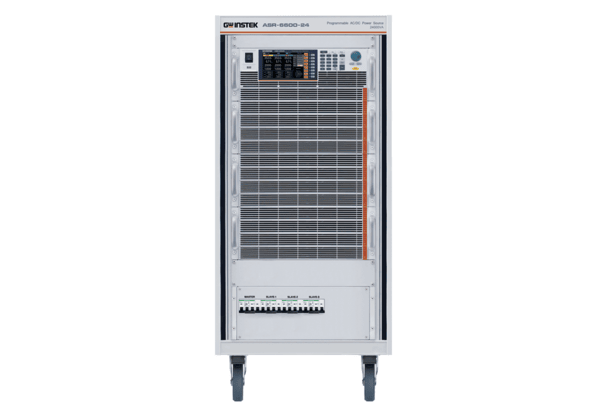

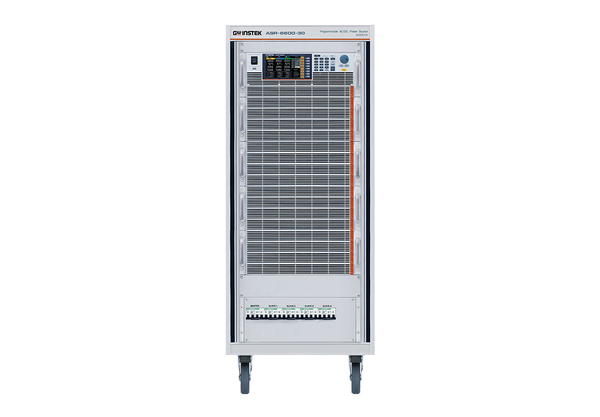

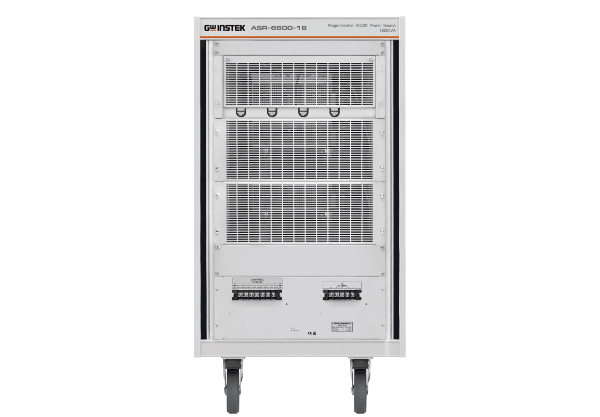

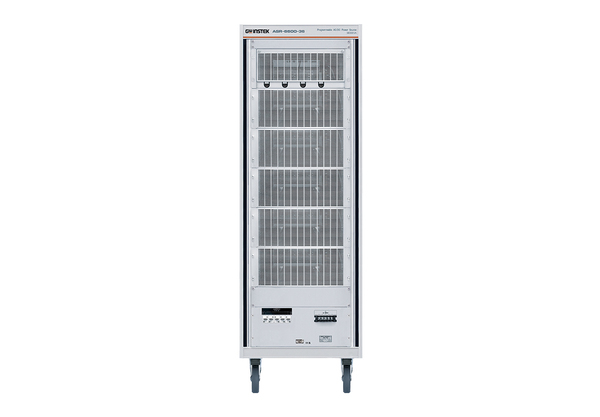

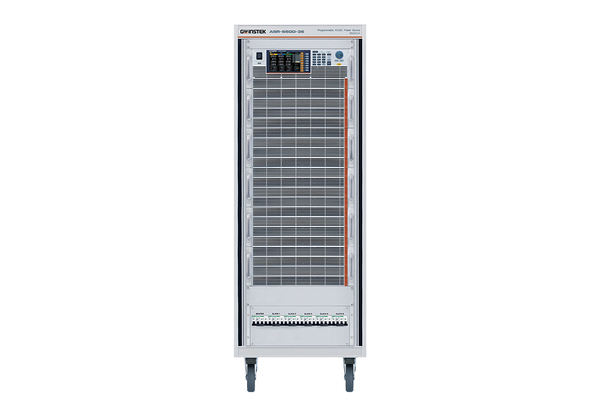

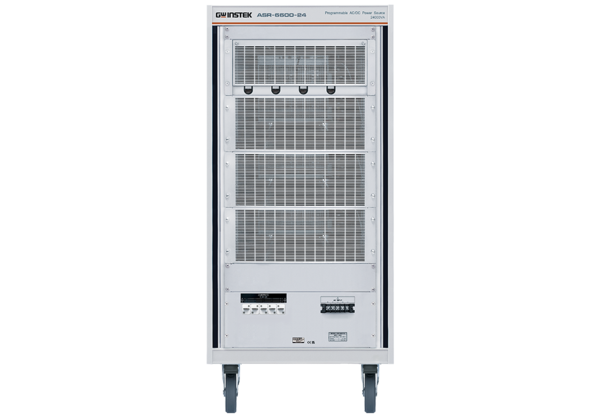

- Supports parallel connection type up to 36
kVA / 36 kW maximum

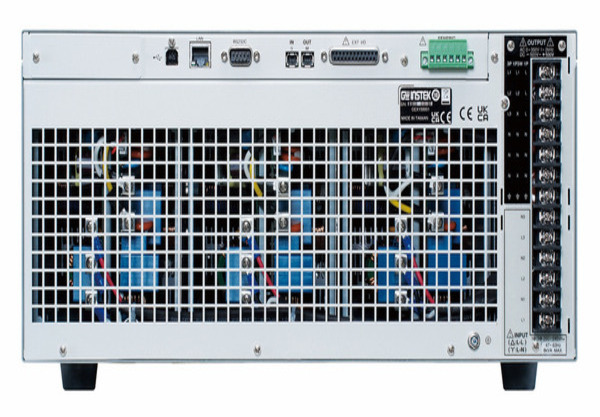

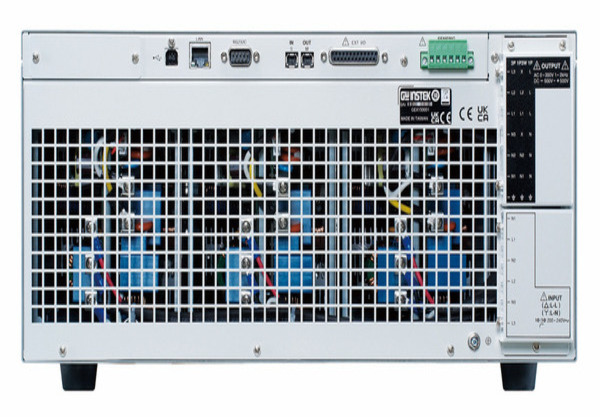

- Standard interfaces: RS-232C, USB, LAN
- Optional interfaces: CAN Bus, DeviceNet,
GPIB
