Description

25MHz~250MHz frequency bandwidth selections to meet diverse signal generation needs!

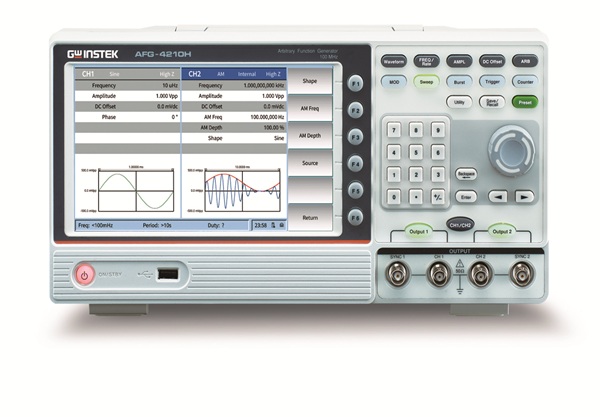

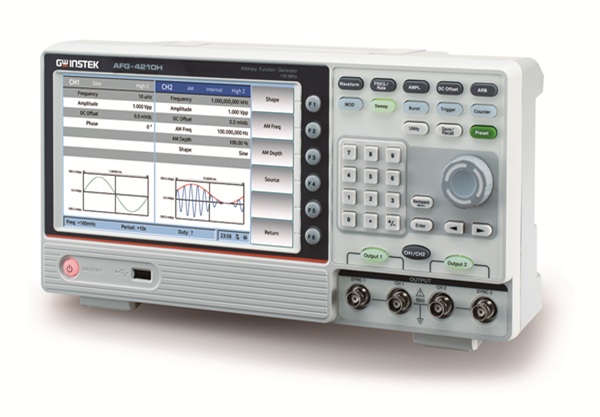

AFG-4000 arbitrary function generator series is GW Instek’s first arbitrary function generator series to be equipped with an 8” large touch screen. The frequency bandwidth of the single-channel models is 25MHz, and dual- channel models feature 250MHz/100MHz/80MHz/60MHz/35MHz/25MHz frequency bandwidth selections. The entire series provides high resolution of 1μHz and has built-in standard waveforms such as sine wave, square wave, triangle wave, pulse wave, noise wave, harmonic wave, etc. The highest bandwidth 250MHz model provides 1.25GSa/s sample rate; the mid-range models ranging from 35MHz to 100MHz provide 500MSa/s sample rate; and the 25MHz entry-level models have a sampling rate of 125MSa/s. For vertical resolution, the 35MHz~250MHz models feature 16-bit resolution, and 25MHz entry-level models provide 14-bit resolution. In addition, in terms of memory depth, dual channel 25MHz ~250MHz models provide 10M memory depth, and entry-level single channel 25MHz models provide arbitrary waveform editing function with 16k memory depth. The entire series has built-in 146 arbitrary waveforms for editing and output.

Features

• Provide single-channel or dual-channel output
• Single channel: AFG-4125E / 4125AE (25MHz)
• Dual Channel: AFG-4225E / 4235 / 4260 / 4280 / 4210H / 4225H (25/35/60/80/100/250MHz)
• Built-in Sine, Square, Triangle, Ramp, Pulse, Noise, Harmonic wave, Arbitrary wave
• Min. resolution is 1μHz
• Arbitrary function: Sampling rate
• AFG-4225H: 1.25GSa/s
• AFG-4235 / 4260 / 4280 / 4210H: 500MSa/s
• AFG-4125E / 4125AE / 4225E: 125MSa/s
• Amplitude Resolution:
• AFG-4125E / 4125AE / 4225E: 14 bits
• AFG-4235 / 4260 / 4280 / 4210H / 4225H: 16 bits
• Memory Length:
• AFG-4225E / AFG-4235 / 4260 / 4280 / 4210H / 4225H: 10M per channel
• AFG-4125E / 4125AE: 16k per channel
• Modulation: AM, DSB-AM, FM, PM, PWM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, OSK, SUM
• Built-in sweep, burst, counter function
• AFG-4125AE Built-in Power Amplifier function

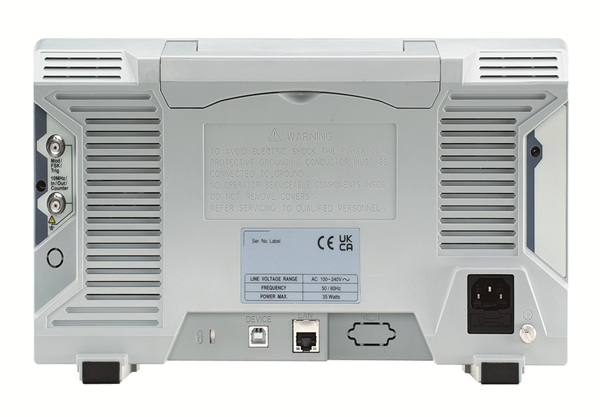

• Communication interface:
• AFG-4235 / 4260 / 4280 / 4210H / 4225H provide USB, LAN interface
• AFG-4125E / 4125AE / 4225E provide USB interface
• 8” TFT LCD Display, 800×480 resolution; Multi-Touch Display: AFG-4235 / 4260 / 4280 / 4210H / 4225H
