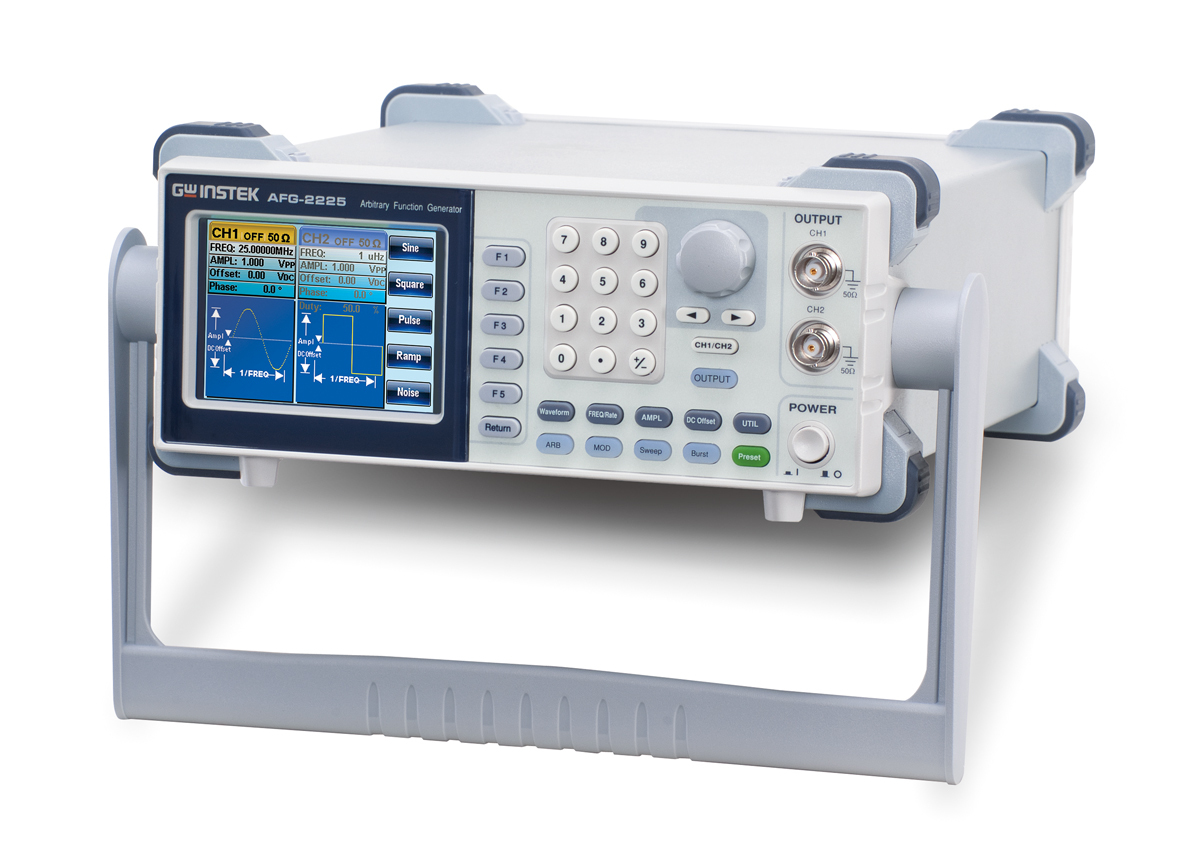

AFG-2225 Dual-Channel Arbitrary Function
Generator
Features
- Wide Frequency Ranges From 1μHz to 25MHz
(sine/square wave)
- 1 μHz Resolution in Full Range
- Built-in Standard 120MSa/s, 10bit, 4k
Points Arbitrary Waveform for Both Channels
- Couple, Tracking, Phase Operations of
Dual Channel are Supported
- 1% ~ 99% Adjustable Duty Cycle for Square
Waveform
- High Resolution and Colored TFT LCD with
Friendly User Interface
- Multiple Editing methods to Edit
Arbitrary
Waveform Easily
- Built-in Standard
AM/FM/PM/FSK/SUM/Sweep/Burst and Frequency
Counter
- USB Host/Device Interface for Remote
Control and Waveform Editing
Description
TGW Instek is
launching AFG-2225, its first basic level dual-channel
arbitrary function generator, which provides superior features in
its class. Both channels are equipped with same characteristics
to fit dual-signal applications such as differential or IQ
signaling. The outstanding cost-performance value makes the AFG-2225 a
practical instrument to accelerate the development process.
The major features for both channels include 10Vpp output amplitude;
25MHz frequency bandwidth with 1uHz resolution;
built-in waveforms of Sine, Square, Ramp (Triangle) and Noise. As to
the 1%~99% adjustable duty cycle of Square waveform
can be used as pulse signal sources. For the arbitrary waveform,
user can edit the 66 built-in waveforms or create a whole new one.
Moreover, AFG-2225 carries features of AM/FM/PM/FSK/SUM Modulation,
Sweep, Burst and Frequency Counter, which can be applied to
various communication fields.
In addition to the intuitive and friendly user interface, the
3.5-inch color LCD displays the comprehensive operation
information including the true waveform presented at the output. USB
Host and Device interfaces are equipped to link
the AFG-2225 with other devices, which provide the flexibility of
waveform generation for more practical usages.
With link to GW Instek GDS-series Digital Storage Oscilloscopes
(DSOs), the waveforms of interest can be captured and reconstructed.
User can also use the arbitrary waveform PC software to edit the
waveform and then send to AFG-2225 directly, or save the waveform
into flash drive and then transfer to AFG-2225.
- Frequency ranges from 1uHz to 25MHz, and
offers multiple standard waveforms
- Full-Functions equipped Dual-channel Signal
Output Capability
- Correlated Functions of Dual-channel
Outputs
- High-flexibility of Arbitrary Waveforms
Editing
- 1%~99% Adjustable Duty Cycle of Square
Wave
- Friendly Operating Interfaces and Instant
Parameter Display
- 66 Built-in Arbitrary Waveforms
- Support Multi-change Signal
Application
- Impedance Switch Function
- Provide USB Host/Device Interface
Description
TGW Instek is
launching AFG-2225, its first basic level dual-channel
arbitrary function generator, which provides superior features in
its class. Both channels are equipped with same characteristics
to fit dual-signal applications such as differential or IQ
signaling. The outstanding cost-performance value makes the AFG-2225 a
practical instrument to accelerate the development process.
The major features for both channels include 10Vpp output amplitude;
25MHz frequency bandwidth with 1uHz resolution;
built-in waveforms of Sine, Square, Ramp (Triangle) and Noise. As to
the 1%~99% adjustable duty cycle of Square waveform
can be used as pulse signal sources. For the arbitrary waveform,
user can edit the 66 built-in waveforms or create a whole new one.
Moreover, AFG-2225 carries features of AM/FM/PM/FSK/SUM Modulation,
Sweep, Burst and Frequency Counter, which can be applied to
various communication fields.
In addition to the intuitive and friendly user interface, the
3.5-inch color LCD displays the comprehensive operation
information including the true waveform presented at the output. USB
Host and Device interfaces are equipped to link
the AFG-2225 with other devices, which provide the flexibility of
waveform generation for more practical usages.
With link to GW Instek GDS-series Digital Storage Oscilloscopes
(DSOs), the waveforms of interest can be captured and reconstructed.
User can also use the arbitrary waveform PC software to edit the
waveform and then send to AFG-2225 directly, or save the waveform
into flash drive and then transfer to AFG-2225.
- Frequency ranges from 1uHz to 25MHz, and
offers multiple standard waveforms
- Full-Functions equipped Dual-channel Signal
Output Capability
- Correlated Functions of Dual-channel
Outputs
- High-flexibility of Arbitrary Waveforms
Editing
- 1%~99% Adjustable Duty Cycle of Square
Wave
- Friendly Operating Interfaces and Instant
Parameter Display
- 66 Built-in Arbitrary Waveforms
- Support Multi-change Signal
Application
- Impedance Switch Function
- Provide USB Host/Device Interface
Features
- Wide Frequency Ranges From 1μHz to 25MHz
(sine/square wave)
- 1 μHz Resolution in Full Range
- Built-in Standard 120MSa/s, 10bit, 4k
Points Arbitrary Waveform for Both Channels
- Couple, Tracking, Phase Operations of
Dual Channel are Supported
- 1% ~ 99% Adjustable Duty Cycle for Square
Waveform
- High Resolution and Colored TFT LCD with
Friendly User Interface
- Multiple Editing methods to Edit
Arbitrary
Waveform Easily
- Built-in Standard
AM/FM/PM/FSK/SUM/Sweep/Burst and Frequency
Counter
- USB Host/Device Interface for Remote
Control and Waveform Editing
