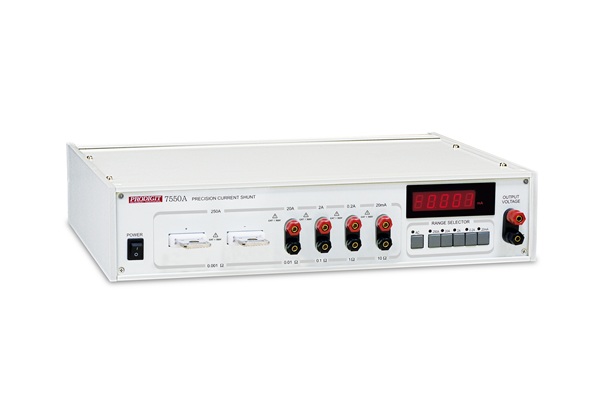

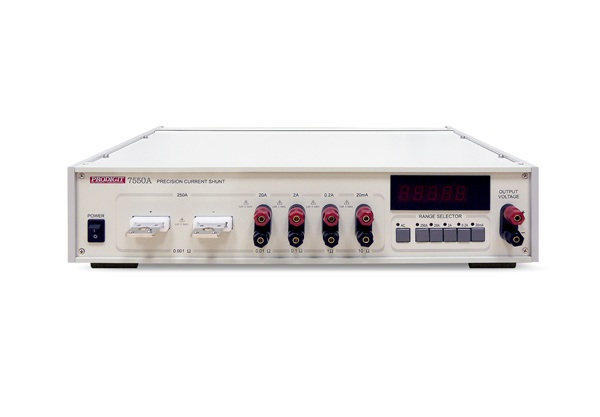

7550A Precision Current Shunt
Description
Model 7550A has five precision selectable Ultra stable Current Shunts which ranges from 10 Ω, 1 Ω, 0.1 Ω, 0.01 Ω, and 0.001 Ω. The Shunt T/C is less than 10 ppm, and the internal current meter will measure from 1 μA to 250 Amps.
The Five selector switches, Shunts and the internal 4 1/2 Digit AC & DC Current Meter displays the respective shunt current. Adding an external DVM (with 5 1/2 digit or higher) will increase both resolution and current reading accuracy.
Applications
AC & DC Current Meter
AC & DC Current Sensor
AC & DC Power Supply
AC & DC Electronic Load
AC & DC Power Meter
Model 7550A has five precision selectable Ultra stable Current Shunts which ranges from 10 Ω, 1 Ω, 0.1 Ω, 0.01 Ω, and 0.001 Ω. The Shunt T/C is less than 10 ppm, and the internal current meter will measure from 1 μA to 250 Amps.
The Five selector switches, Shunts and the internal 4 1/2 Digit AC & DC Current Meter displays the respective shunt current. Adding an external DVM (with 5 1/2 digit or higher) will increase both resolution and current reading accuracy.
Applications
AC & DC Current Meter
AC & DC Current Sensor
AC & DC Power Supply
AC & DC Electronic Load
AC & DC Power Meter
Features
- 0.01 % High Accuracy
- 4 1/2 Digit AC & DC Current Meter
- Built-in Over Current Protection
- Less than 10 ppm /℃
- High Stability & Reliability
