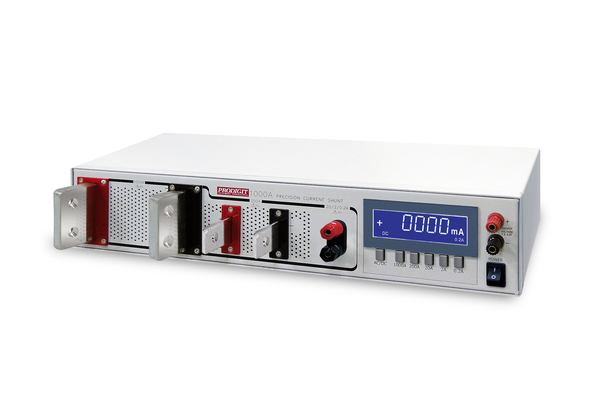

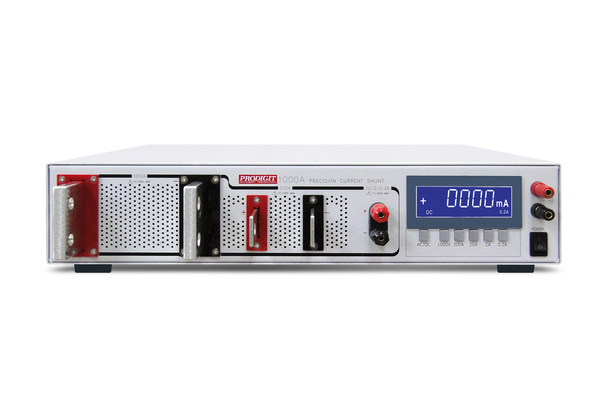

1000A Precision Current Shunt
Description
Model 1000A has five precision selectable Ultra stable Current Shunts which ranges from 0.0001 Ω to 1 Ω. The Shunt T/C is less than 10 ppm, and the internal current meter will measure from 1 μA to 1000 Amps.
The five shunts selector and internal 5 1/2 Digit AC & DC Current Meter displays the respective shunt current. Connect an external DVM into output (with 5 1/2 digit higher) will increase both resolution and current reading accuracy.
Current range can be set and current value readback by optional interface.
Applications
AC & DC Current Meter
AC & DC Current Sensor
AC & DC Power Supply
AC & DC Electronic Load
AC & DC Power Meter
Model 1000A has five precision selectable Ultra stable Current Shunts which ranges from 0.0001 Ω to 1 Ω. The Shunt T/C is less than 10 ppm, and the internal current meter will measure from 1 μA to 1000 Amps.
The five shunts selector and internal 5 1/2 Digit AC & DC Current Meter displays the respective shunt current. Connect an external DVM into output (with 5 1/2 digit higher) will increase both resolution and current reading accuracy.
Current range can be set and current value readback by optional interface.
Applications
AC & DC Current Meter
AC & DC Current Sensor
AC & DC Power Supply
AC & DC Electronic Load
AC & DC Power Meter
Features
- 0.01 % High Accuracy
- 5 1/2 Digit AC & DC Current Meter
- Built-in Over Current Protection
- Less than 10 ppm /℃ (Range 1000 A: less than 50 ppm/℃)
- High Stability & Reliability

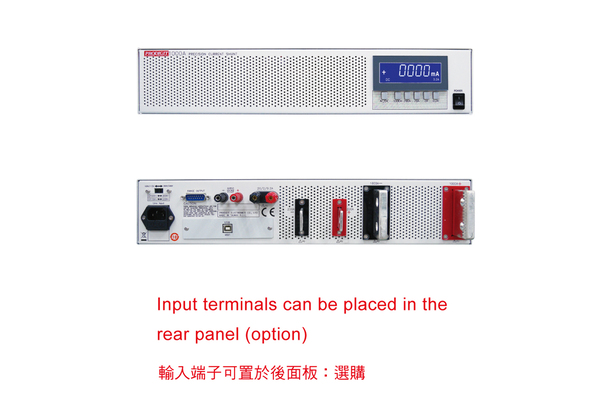

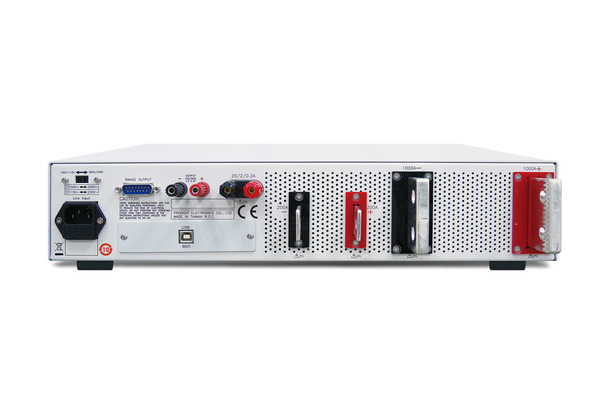

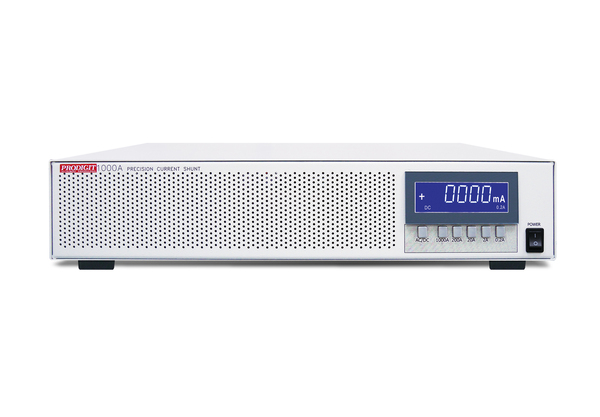

- Input terminals can be placed in the rear panel (option Model 1000A-R)
- Optional Interface: GPIB, RS232, USB, LAN
