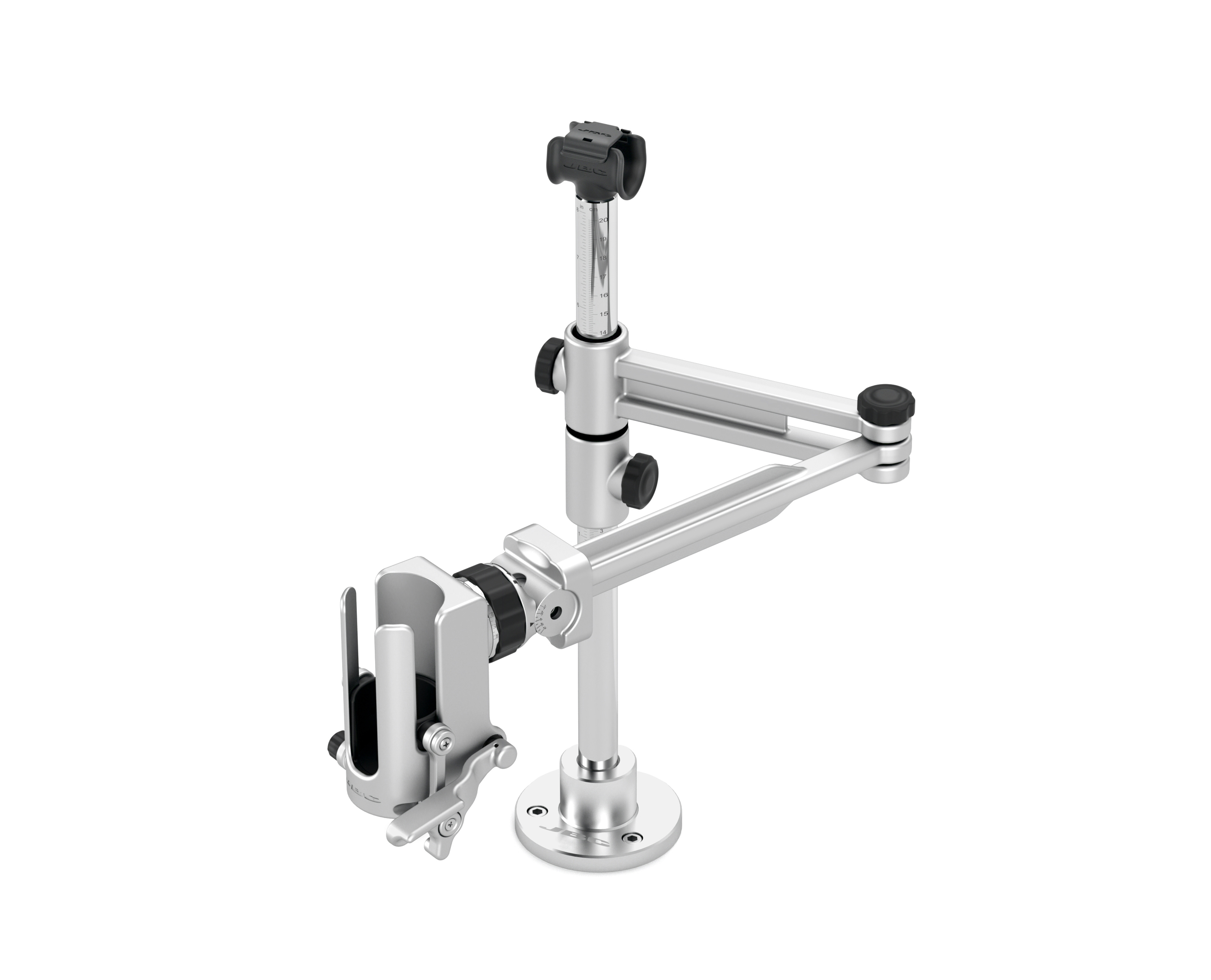

RWT Adjustable Rework Arm

Description

This Adjustable Rework Arm comes without a base plate and it is easily installable onto the workbench. Therefore, the operator takes full advantage of the workbench surface.

RWT Adjustable Rework Arm supports Heaters Hose Set allowing hands-free operation. Due to an included adapter unit the Rework Arm is suitable for JTSE and TESE.

Tool Holder allows inclination and rotation adjustment. Both vertical axis and Tool Holder articulation are scaled, which is helpful in repetitive soldering tasks.

Hose Clamp holds the Heater Hose away from the work area to keep it clear of obstacles.

Product Composition

• 1 RWT Adjustable Rework Arm

Specification

• Net weight - 2,79 kg (6.16lb)
• Height - 386,5 mm / 15.2 in
• Arm lenght - 444,5 mm / 17.5 in
• ESD safe connector

Weight and Dimension

• Package - 474 x 368 x 195 mm / 3.92 kg., 18.66 x 14.49 x 7.68 in / 8.64 lb.
