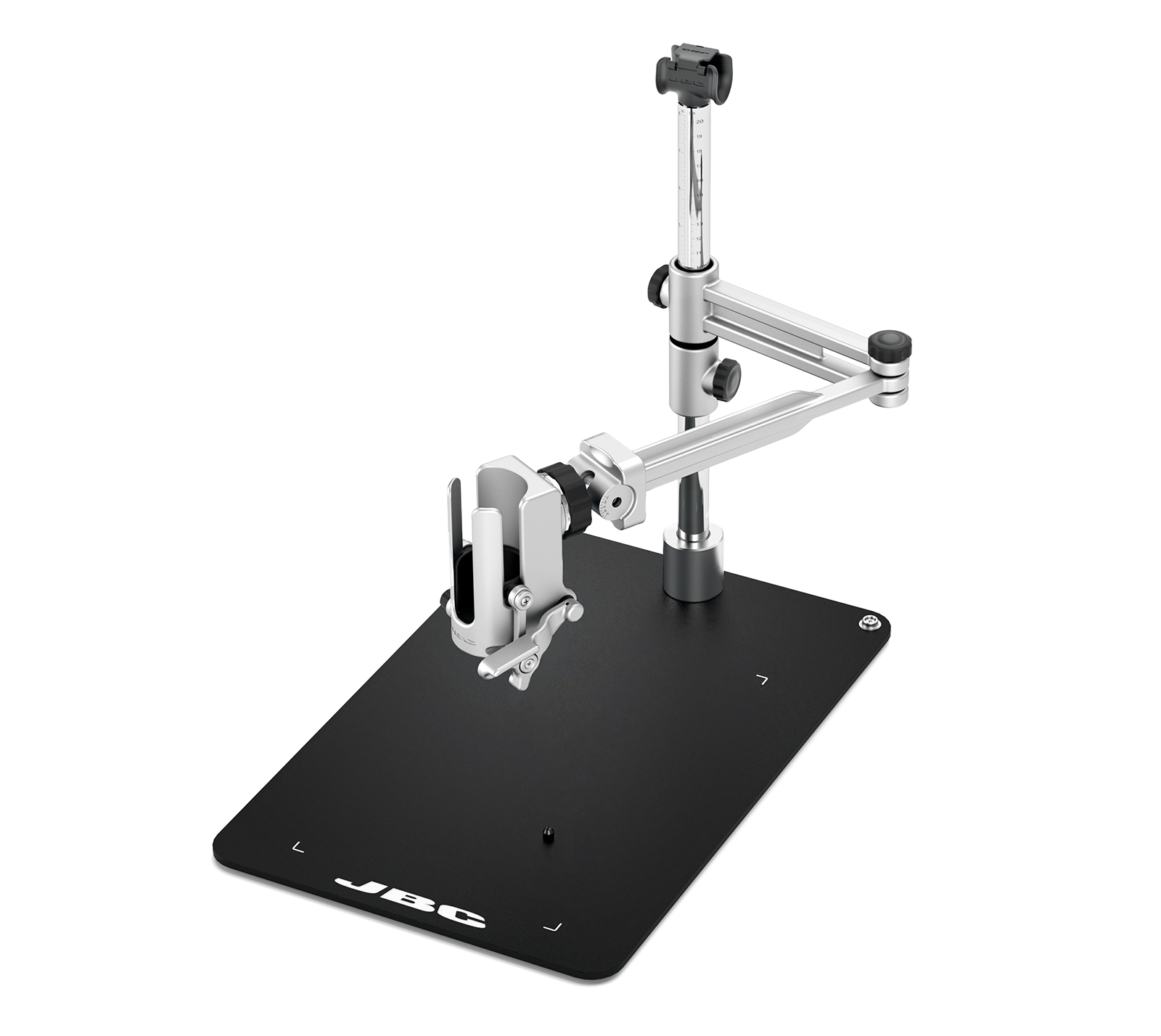

RWS Adjustable Rework Arm for PHSE

Description

RWS Adjustable Rework Arm supports Heater Hose Sets allowing hands-free operation. Due to an included adapter unit the Rework Arm is suitable for JTSE and TESE.

Its base plate is designed to work with PHSE Preheater.

Tool holder allows inclination and rotation adjustment. Both vertical axis and Tool Holder articulation are scaled, which is helpful in repetitive soldering tasks.

Hose Clamp holds the Heater Hose away from the work area to keep it clear of obstacles.

Product Composition

• 1 RWS Adjustable Rework Arm for PHSE

Specification

• Net weight - 5,10 kg (11.24lb)
• Base dimensions - 270 x 410 mm / 10.6 x 16.2 in
• Height - 386.5 mm / 15.2 in
• Arm lenght - 444,5 mm / 17.5 in
• ESD safe connector

Weight and Dimension

• Package - 474 x 368 x 195 mm / 5.70 kg., 18.66 x 14.49 x 7.68 in / 12.57 lb.
