Description
A Hi-tech DSO
Platform :

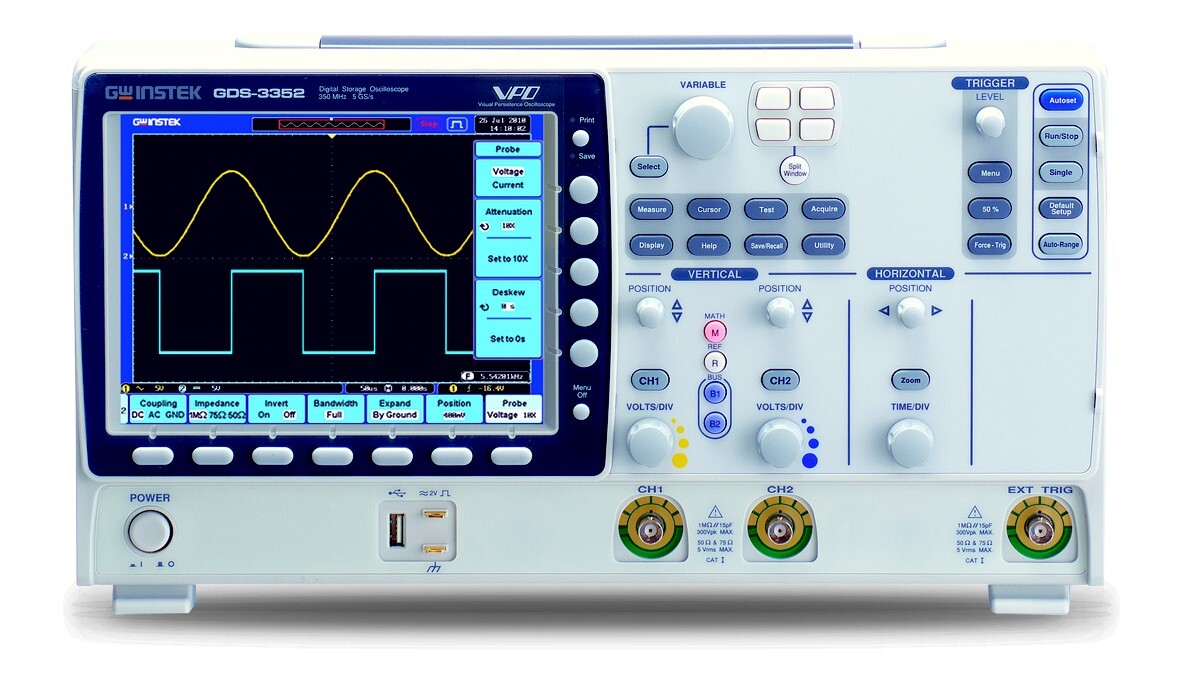

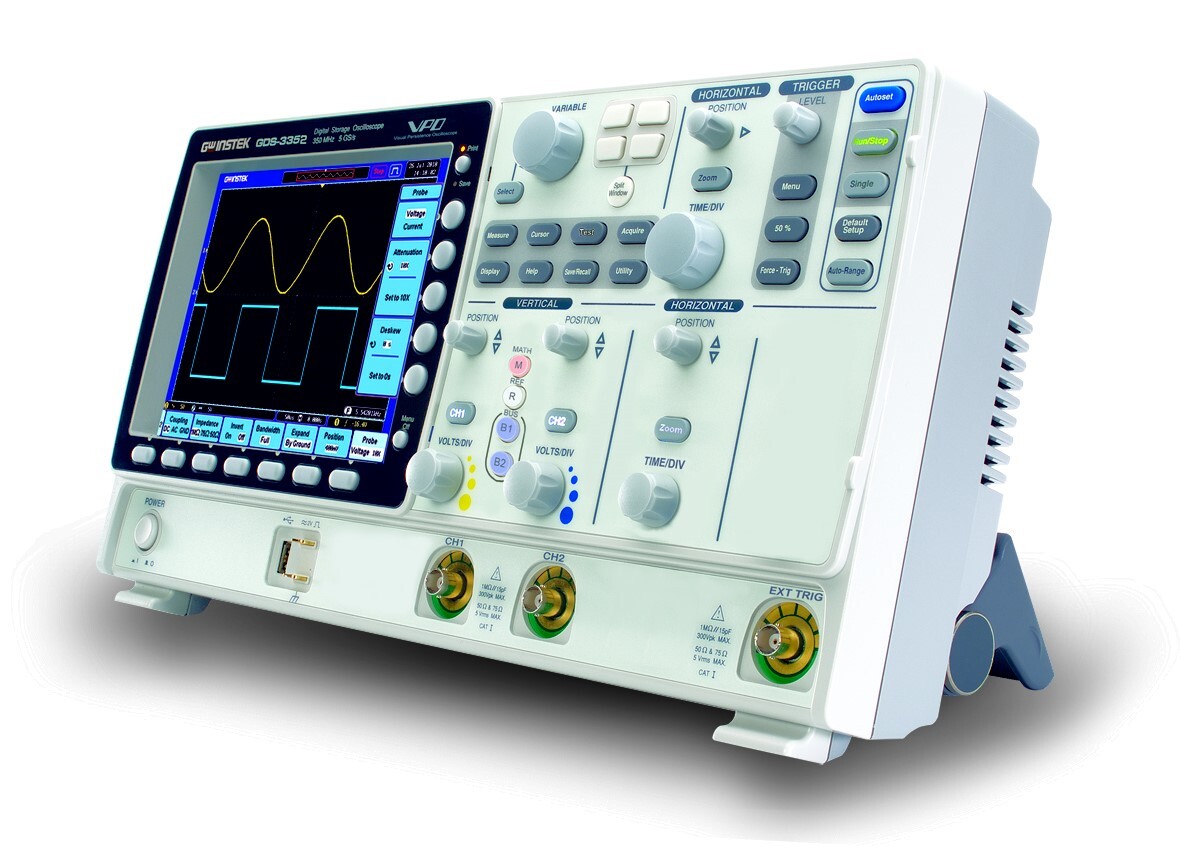

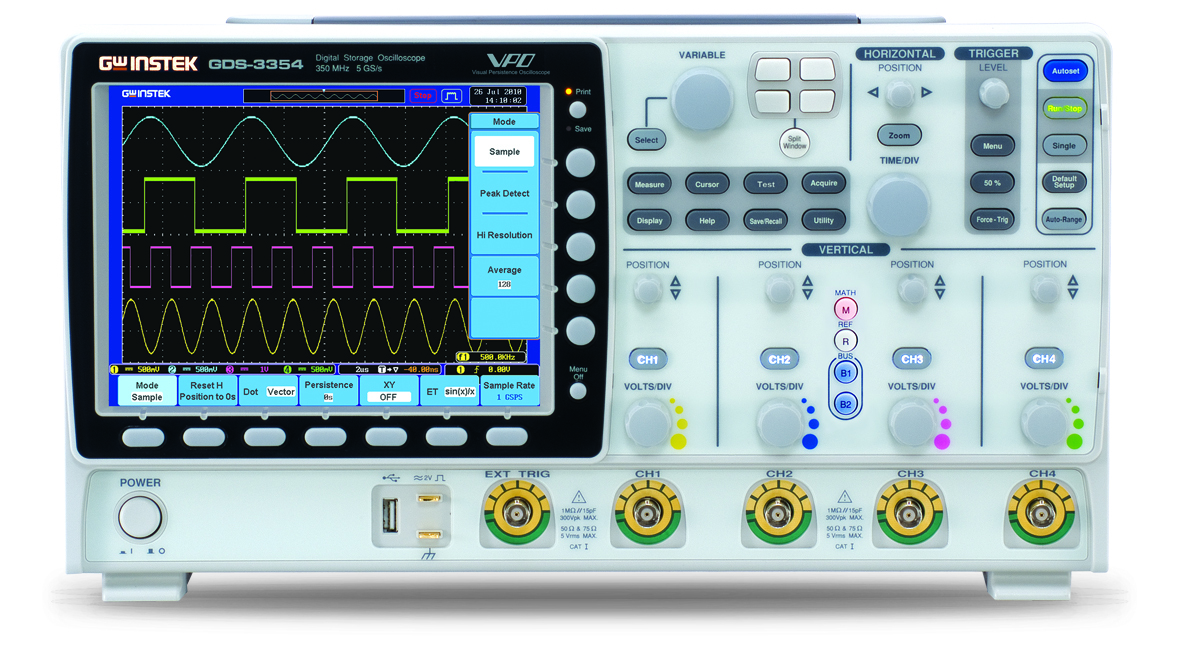

The GDS-3000 Series is a platform of 4-input channels, 500MHz
bandwidth, 5GSa/s sampling rate,
and VPO waveform display. The split screen feature has been designed
to meet the requirements
of multi-window & multi-signal tests in the research and the
manufacturing fields.
The optional power analysis software and the optional serial bus
analysis software are available
to facilitate the engineer's tasks in testing and manufacturing of
the associated products.
The differential probe, GDP-025, GDP-050 & GDP-100, and current
probes, GCP-020, GCP-100 and GCP-530 & GCP-1030,
are coming along with the GDS-3000 Series to provide total solutions
for a wide variety of applications in the industry,
service and education market sectors. The GDS-3000 Series, a
high-tech platform carrying thoughtful features,
brings very high customer value to both general purpose market and
professional market.
Features
- 500/350/250/150MHz with 2/4 Channels
- 5GSa/s RT or 100GSa/s ET Sampling Rate
- Independent Memory for Each Channel
- VPO Technology
- Large 8-inch 800x600 Display
- Split Screen Function
- 3 Built-in Impedances (50Ω/75Ω/1MΩ)
- Power Analysis Software (Optional)
- Serial Bus Analysis Software for I2C, SPI and
UART (Optional)
