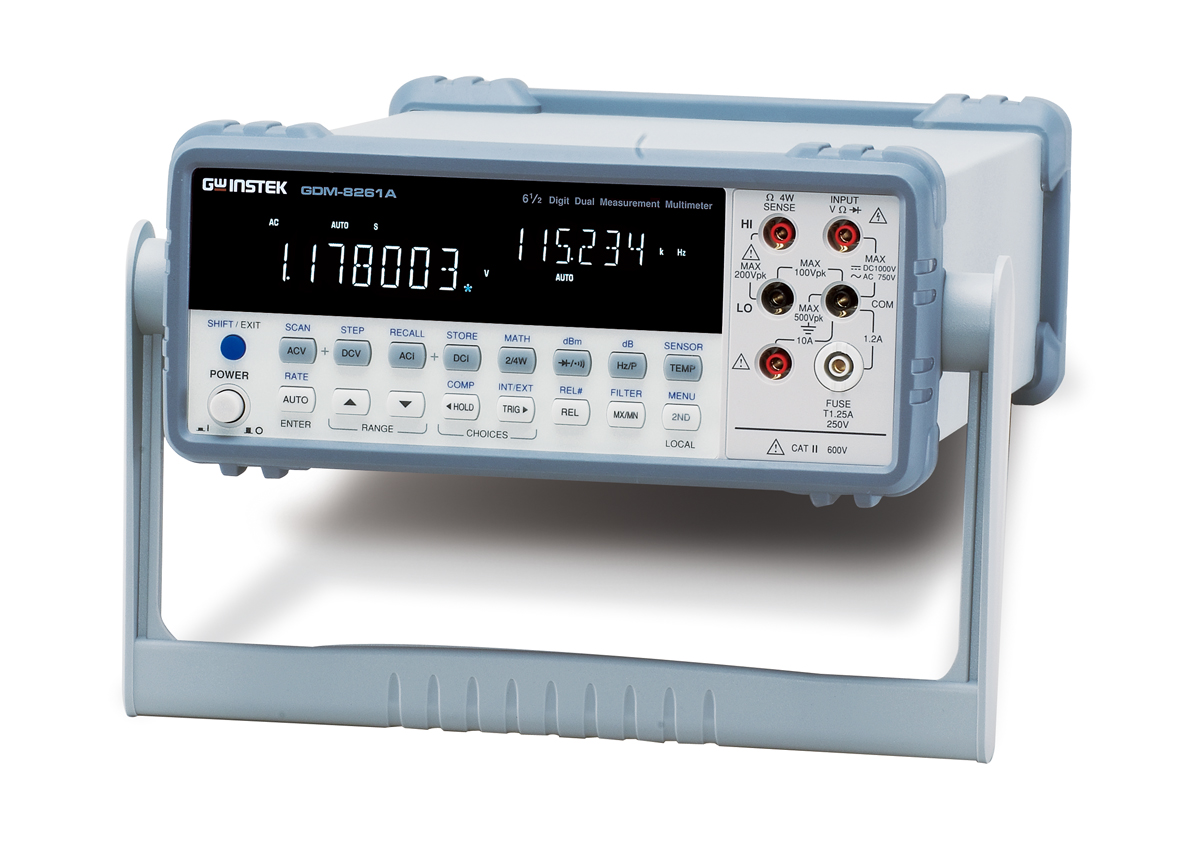

GDM-8261A Dual Measurement Multimeter
Features
- 6 1/2 Digit Display：1,200,000 counts
- DCV Basic Accuracy：0.0035%
- Dual Measurements to perform two selected
measurements simultaneously
- Bright Vacuum Fluorescent Display
(VFD)
- Provide AC+DC Voltage or Current Measurement
Functions
- 11 Measurement Functions & 10 Math
Functions
- High Resolution: Up to 100pA with DCI and 1nA
with ACI Measurements
- Temperature Measurement (RTD & Thermocouple)
from -200°C ~ +1820°C
- High Transmission Speed: Up to 2,400
readings/sec through the USB
- Standard Interfaces : USB, RS232C, Digital
I/O
- Optional Interfaces : GPIB or LAN
- Optional Scanner Card : GDM-SC1A (V ch x16, I
ch x2)
- Free PC software : DMM Excel ADD-INS ,
LabVIEW Driver
Description
Boost Your
Measurement Speed & Efficiency
The GDM-8261A is a high precision 6 ½ digit Digital Multimeter with
dual measurement displays, 11 measurement functions and 10 math
functions at high accuracy (35ppm DC voltage accuracy) to
accommodate the most frequently performed parameter measurements in
various application fields today.
The GDM-8261A adopts a scanner card, which carries 16 V-Channels and
2 I-Channels, to facilitate the measurements of multiple-test points
on either a device or multiple devices all at a press of a button.
With this multi-point measurement capability, the GDM-8261A can be
used as a semi-auto ATE System to increase the throughput of
manufacturing test or as a data logger to perform long-term
monitoring or characterization of a DUT. A PC Software, DMM-Viewer,
is available with GDM-8261A to support multi-channel panel setting
and data logging of the scanner card. Besides, a LabVIEW driver is
also supported to help users create his/her own virtual instrument
on the PC screen for easy programming. For ATE system measurements
or remote control applications, both USB and RS-232 Interfaces are
provided as standard, and either GPIB or LAN can be selected as
optional interface for the GDM-8261A.
- Ideal for Bench Assignments
- Dual Measurements with Dual Displays
- High Measurement Resolution & High Sampling
Rate
- 2/ 4 Wire Resistance Measurement
- Store/Recall Function
- Math Measurement
- Temperature Measurement
- Versatile Interfaces & Transmitted
Speed
- Multipoint Scanner Card Measurement
- Convenient PC Software
