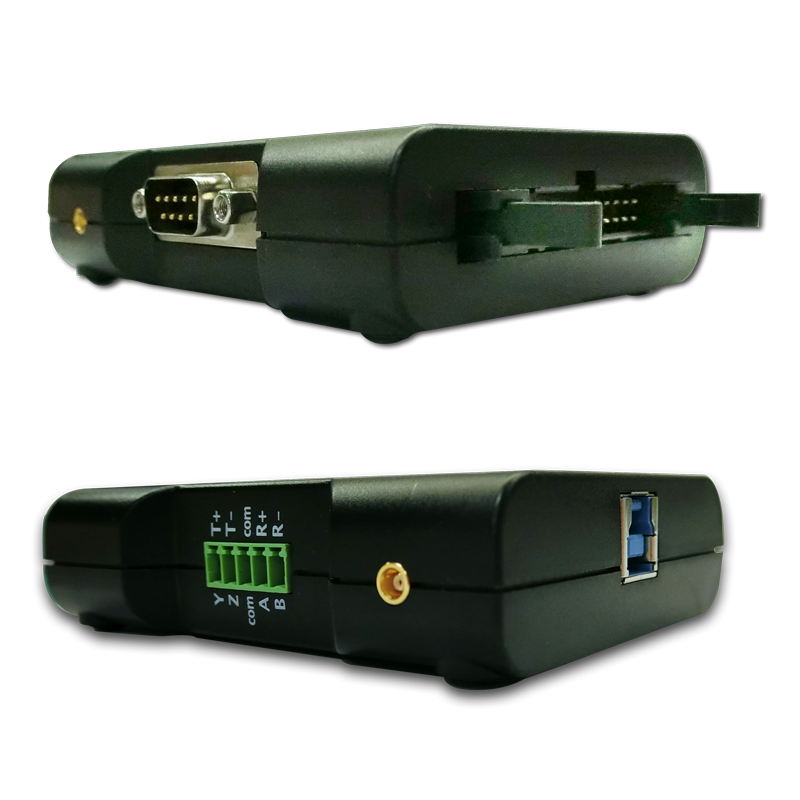

Digital specifications
|
|
| power supply |
USB bus-power (+5V) |
| Static power consumption |
0.75W |
| Instantaneous maximum power consumption |
< 2.5W |
| Transmission interface |
USB 3.0 |
| Timing analysis (asynchronous, highest sampling
rate) |
800MHz |
| Status analysis (synchronization, external clock)
|
200MHz |
| Data storage method |
Transition storage |
| aisle |
25 |
| total memory |
|
| Timing analysis |
N/A |
| 2GHz timing [number of channels available] - memory
per channel |
N/A |
| 1GHz timing [number of channels available] - memory
per channel |
N/A |
| 500MHz timing [number of channels available] -
memory per channel |
N/A |
| 250MHz timing [number of channels available] -
memory per channel |
N/A |
| Inter-channel phase error |
N/A |
| Input voltage channel |
N/A |
| Input voltage impedance |
200KΩ // <5pF< /td>
|
| Non-maximum destructive withstand voltage |
±40V DC, 15Vpp AC |
| Input voltage operating range |
N/A |
| Input voltage sensitivity |
0.5Vpp@150MHz |
| Trigger voltage group |
2 (ch0~7, ch8~15 & clk0)
|
| Trigger voltage range |
±6V |
| Trigger voltage resolution |
50mV |
| Reference voltage accuracy |
±100mV + 5%*Vth |
| Trigger resolution |
1.25 ns |
| Trigger type |
Channel, Pattern, Single, Width, Time-out, External
|
| bus trigger |
BiSS-C, CAN2.0B, CAN-FD, DALI2.0, DP_Aux, HID over
I²C, I²C, I²S, LIN2.2, MDIO, MIPI I3C 1.1, Modbus,
PMBus, Profibus, PWM, RS422, RS485, SENT, SMBus,
SPI, UART (RS232), USB PD 3, USB1.1 |
| Agreement Analysis |
BiSS-C, CAN2.0B, CAN-FD, DALI2.0, DP_Aux, HID over
I²C, I²C, I²S, LIN2.2, MDIO, MIPI I3C 1.1, Modbus,
PMBus, Profibus, PWM, RS422, RS485, SMBus, SPI, UART
(RS232), USB PD 3, USB1.1
|
