Acute Technology Inc

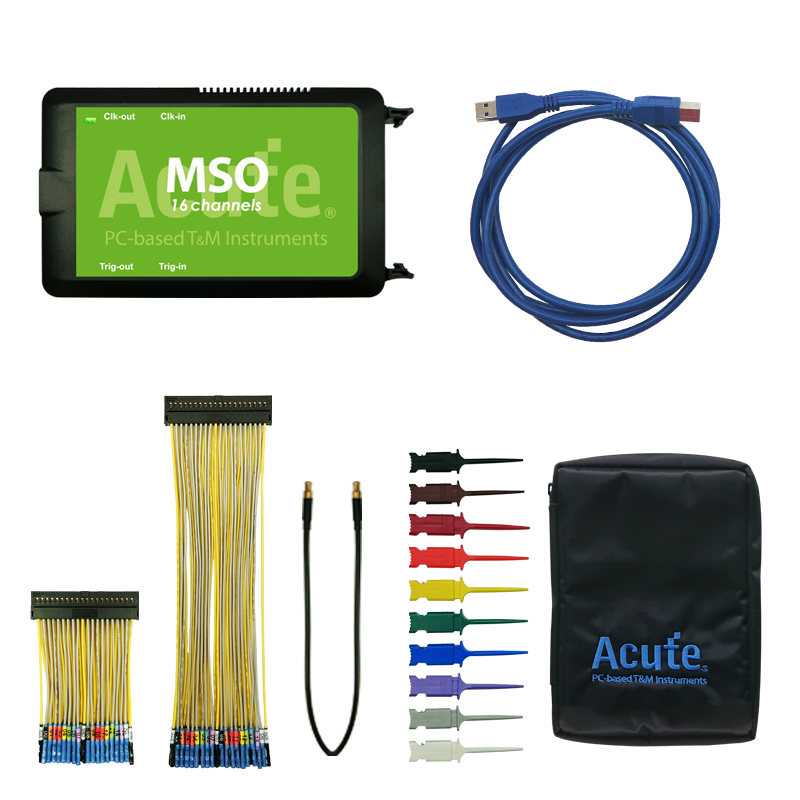

MSO2216B Mixed Signal Logic Analyzer
Features
  • PC-based, USB3.0 interface/power supply
  • 16 channels (same channel can measure digital and analog signals simultaneously)
  • Digital input: 2 GHz timing, 200 MHz status analysis
  • Analog input: 200 MS/s (maximum), frequency 40 MHz wide
  • 8 Gb total memory
  • Long-term recording function optionally stored in computer memory or hard drive
Features
  • PC-based, USB3.0 interface/power supply
  • 16 channels (same channel can measure digital and analog signals simultaneously)
  • Digital input: 2 GHz timing, 200 MHz status analysis
  • Analog input: 200 MS/s (maximum), frequency 40 MHz wide
  • 8 Gb total memory
  • Long-term recording function optionally stored in computer memory or hard drive

Description

MSO2216B is a 3-in-1 (logic + protocol + oscilloscope) analyzer with 16 channels , and each channel supports simultaneous measurement of analog and digital signals . When measuring power management-related protocols , it can not only decode the protocols but also record them simultaneously. voltage value , and also provides a simultaneous measurement solution for more than 16 channels (up to 128 channels) in power-on timing measurement . Currently, MSO2216B provides two different signal and bus analysis modes : logic analyzer mode & protocol analyzer mode.

In the past, many users had questions or did not understand the voltage level (Threshold) setting in the logic analyzer, so Acute introduced the MSO2216BThe product adds the function of automatically detecting and setting the voltage level with one click , saving users the time required for setting.

Digital specifications
power supply USB bus-power (+5V)
Static power consumption 0.9W
Instantaneous maximum power consumption <6W
Transmission interface USB 3.0
Timing analysis (asynchronous, highest sampling rate) 2GHz
Status analysis (synchronization, external clock) 200MHz
Data storage method Traditional timing, transition timing
aisle 16
total memory 8GB
Timing analysis Number of available channels (traditional timing/transition timing) - memory per channel
2GHz timing [number of channels available] - memory per channel [8/7] - 1Gb
1GHz timing [number of channels available] - memory per channel [16/14] - 512Mb
500MHz timing [number of channels available] - memory per channel [16/16] - 512Mb
250MHz timing [number of channels available] - memory per channel [16/16] - 512Mb
Inter-channel phase error < 1ns
Input voltage channel N/A
Input voltage impedance 1MΩ//2pF
Non-maximum destructive withstand voltage over ±42V DC & AC
Input voltage operating range ±20V / ±10V (general/high resolution)
Input voltage sensitivity 200MHz (1Vpp)
Trigger voltage group 2 (CH0~7 & CKI, CH8~15)
Trigger voltage range ±20V
Trigger voltage resolution 50mV
Reference voltage accuracy ±100mV + 5%*Vth
Trigger resolution 500ps
Trigger type Channel, Label, Single/Multiple Stage, Width, Timeout, Setup/Hold Time Check, External Trigger, Manual
bus trigger BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eMMC 4.5, eSPI, HID over I2C, I2C, I2S, LIN2.2, LPC, MDIO, MII, Mini/Micro LED, MIPI I3C 1.1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, Profibus, RGMII, RMII, SD 2.0 (SDIO 2.0), SENT, Serial Flash (SPI NAND), SMBus, SPI, SVI2, SVI3, SVID, UART (RS232), USB PD 3,USB1.1
Agreement Analysis BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eSPI, HID over I2C, I2C, I2S, LIN2.2, MDIO, MII, MIPI I3C 1.1.1, MIPI RFFE 3, Modbus, PMBus, Profibus, PWM , RGMII, RMII, SMBus, SPI, SVI3, SVID, UART (RS232), USB PD 3, USB1.1
