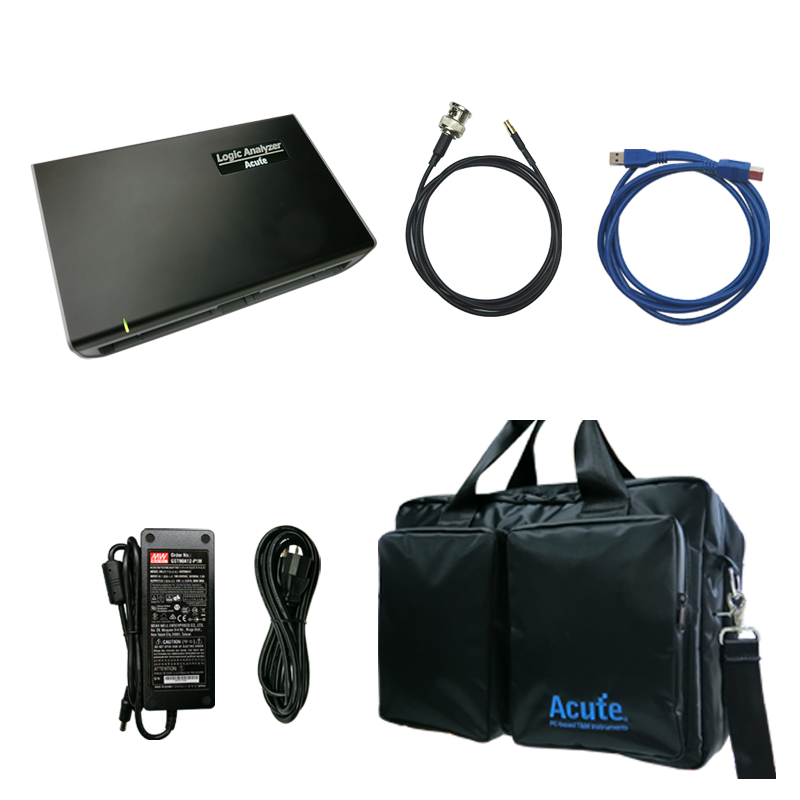

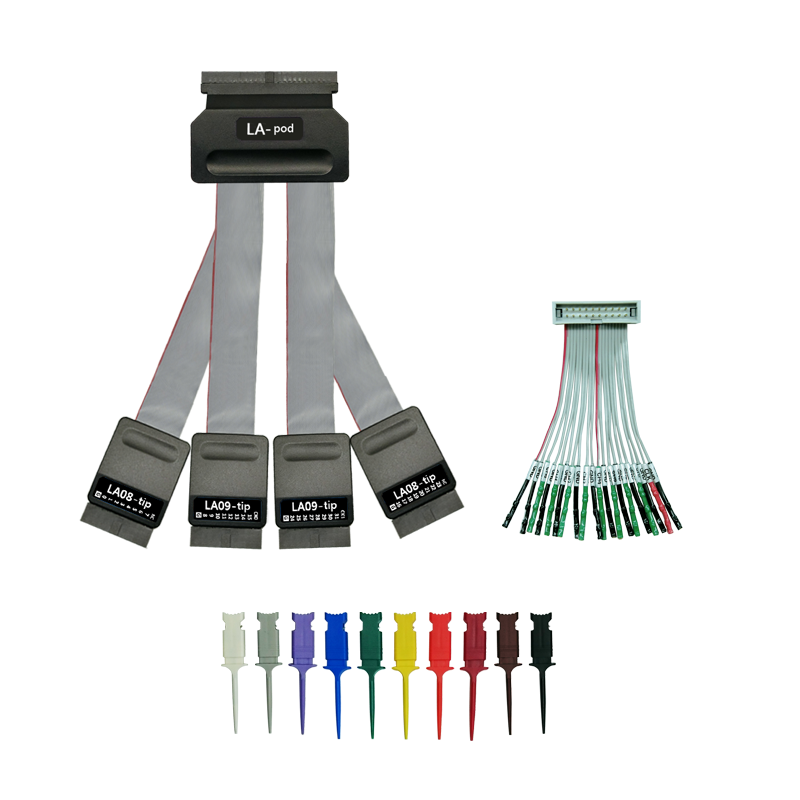

Digital specifications
|
|
| power supply |
12V Power adapter |
| Static power consumption |
18W |
| Instantaneous maximum power consumption |
45W |
| Transmission interface |
USB 3.0 |
| Timing analysis (asynchronous, highest sampling
rate) |
2.4GHz |
| Status analysis (synchronization, external clock)
|
300MHz |
| Data storage method |
Traditional timing, transition timing |
| aisle |
68 |
| total memory |
32GB |
| Timing analysis |
Number of available channels (traditional
timing/transition timing) - memory per channel |
| 2GHz timing [number of channels available] - memory
per channel |
[32/28]-1Gb |
| 1GHz timing [number of channels available] - memory
per channel |
[64/56]-500Mb |
| 500MHz timing [number of channels available] -
memory per channel |
[64/56]-500Mb |
| 250MHz timing [number of channels available] -
memory per channel |
[64/56]-500Mb |
| Inter-channel phase error |
< 500 ps |
| Input voltage channel |
N/A |
| Input voltage impedance |
1M || 5pF |
| Non-maximum destructive withstand voltage |
N/A |
| Input voltage operating range |
±15V |
| Input voltage sensitivity |
~300mV |
| Trigger voltage group |
N/A |
| Trigger voltage range |
-0.5V~4.5V |
| Trigger voltage resolution |
21mV |
| Reference voltage accuracy |
±100mV + 5%* Vth |
| Trigger resolution |
416ps |
| Trigger type |
Channel, Tag Trigger, Single/Multiple Stage, Width,
Timeout, Parallel Clause, External Trigger |
| bus trigger |
BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eMMC 4.5,
eSPI, HID over I2C, I2C, I2S, LIN2.2, LPC, MDIO,
MII, Mini/Micro LED, MIPI I3C 1.1, MIPI RFFE 3 ,
MIPI SPMI 2, Modbus, NAND Flash, PMBus, Profibus,
PWM, RGMII, RMII, SD 3.0 (SDIO 2.0), SENT, Serial
Flash (SPI NAND), SMBus, SPI, SVI2, SVID, UART
(RS232), USB PD 3, USB1.1 |
| Agreement Analysis |
BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eSPI, HID over
I2C, I2C, I2S, LIN2.2, MDIO, MII, MIPI I3C 1.1, MIPI
RFFE 3, Modbus, PMBus, Profibus, PWM, RGMII , RMII,
SMBus, SPI, SVID, UART (RS232), USB PD 3, USB1.1
|
