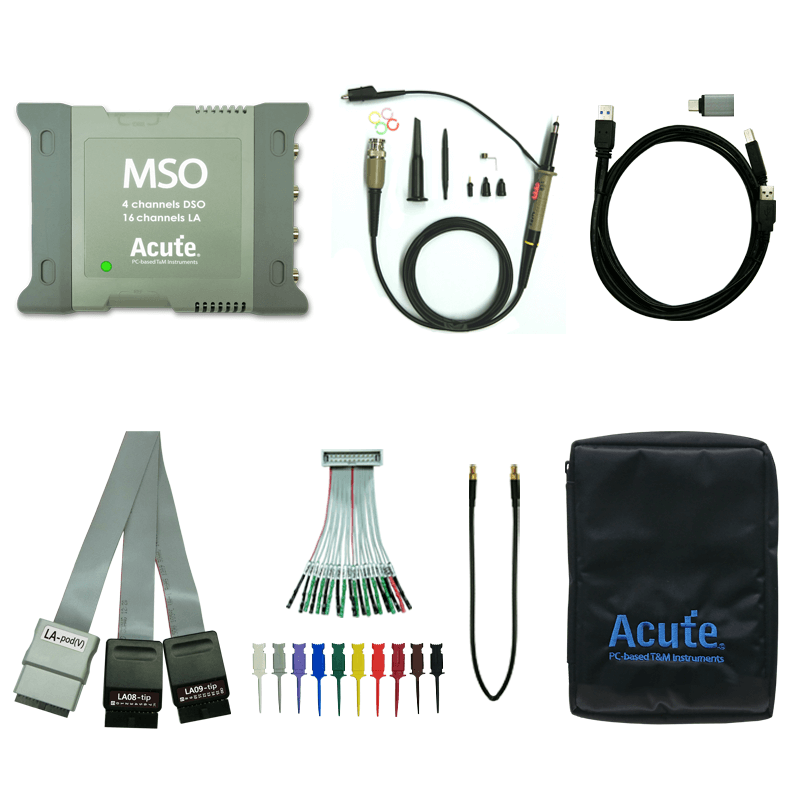

| Analog specifications |
|
| power supply |
USB bus-power (+5V) |
| Static power consumption |
4.5W |
| Instantaneous maximum power consumption |
7.7W |
| capture mode |
Sample, Average, Envelope[*], Peak detect[*], High resolution |
| 8 bits real-time sampling rate [record length] |
1 Ch @ 1 GS/s [512 Mpts]; 2 Ch @ 500 MS/s [256 Mpts]; 4 Ch @ 250 MS/s [128 Mpts] |
| ≧12 bits real-time sampling rate [record length] |
1 Ch @ 500 MS/s [256 Mpts]; 2 Ch @ 250 MS/s [128 Mpts]; 4 Ch @ 125 MS/s [64 Mpts] |
| ≧14 bits real-time sampling rate [record length] |
1 Ch @ 100 MS/s [256 Mpts]; 2 Ch @ 100 MS/s [128 Mpts]; 4 Ch @ 100 MS/s [64 Mpts] |
| Input channel |
4 |
| Input coupling |
AC/DC |
| Input resistance |
1 MΩ || <19 pF |
| Overvoltage protection |
± 100 V (DC + AC peak) |
| Ch-Ch isolation |
50dB @DC to 100MHz; 40dB @ 100MHz to 200MHz |
| Ch-Ch skew |
100 ps between two channels with the same scale & coupling settings |
| Bandwidth |
200MHz |
| Rise Time |
1.75 ns @ 200 MHz; 3.5 ns @ 100 MHz; 7 ns @ 50 MHz |
| Resolution |
8, 12, 14, 15, 16 bits |
| Enter scale |
2 mV/div to 10 V/div |
| Offset range |
±150 V @ 2, 5, 10 V/div;
±15 V @ 0.2, 0.5, 1 V/div;
±1.5 V @ 2, 5, 10, 20, 50, 100 mV/div |
| DC accuracy |
±3% of full scale |
| Bandwidth limitation |
20 MHz, 100 MHz or no limit |
| Bus decode/trigger |
BiSS-C, CAN 2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MDIO, Mini/Micro LED, MIPI I3C 1.1, MIPI RFFE 3, MIPI SPMI 2,
Modbus, PMBus, ProfiBus, SENT, SMBus, SPI, SVI2, UART, USB PD 3, USB1.1
|
| Electrical Characteristics Verification |
I2C, I2S, MIPI I3C, MIPI RFFE, MIPI SPMI, PDM, SPI, UART(RS232) |
| Oscilloscope stacking |
16 Ch (4 devices, 1 master & 3 slaves) |
| Digital specifications |
|
| power supply |
N/A |
| Static power consumption |
N/A |
| Instantaneous maximum power consumption |
N/A |
| Transmission interface |
N/A |

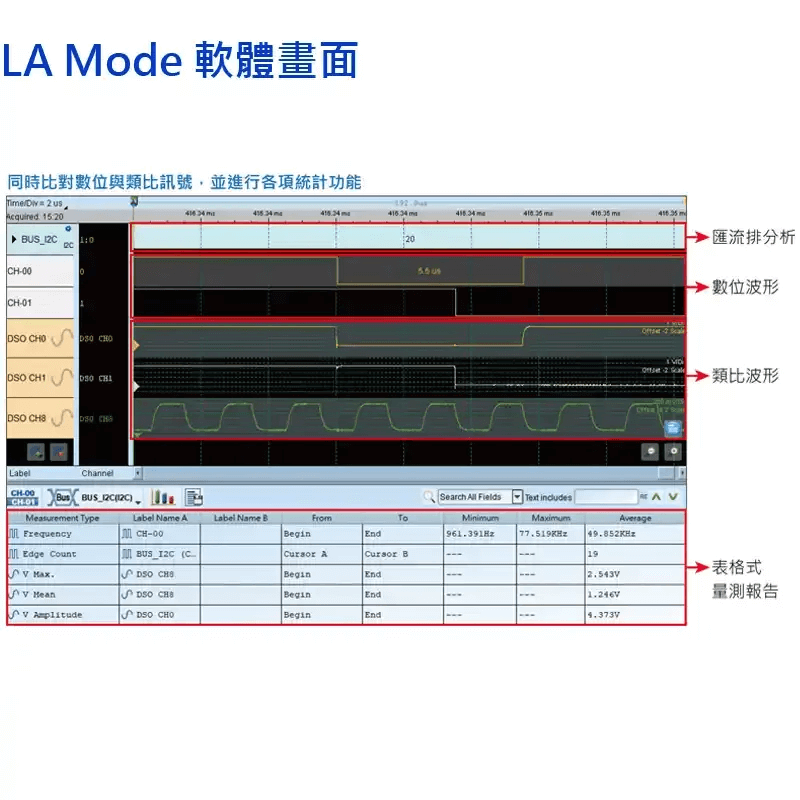

| Timing analysis (asynchronous, highest sampling rate) |
2GS/s |
| Status analysis (synchronization, external clock) |
250MHz |
| Data storage method |
Traditional timing, transition timing |
| Aisle |
16 |
| Total memory |
N/A |
| Timing analysis |
Number of channels available (traditional timing/transition timing) - memory per channel |
| 2GHz timing [number of channels available] - memory per channel |
[8/7]-512 Mpts |
| 1GHz timing [number of channels available] - memory per channel |
[16/14]-256 Mpts |
| 500MHz timing [number of channels available] - memory per channel |
[16/16]-256 Mpts |
| 250MHz timing [number of channels available] - memory per channel |
[16/16]-256 Mpts |
| Inter-channel phase error |
< 1ns |
| Input voltage channel |
16 |
| Input voltage impedance |
75KΩ ∥ <2pF |
| Non-maximum destructive withstand voltage |
±50V |
| Input voltage operating range |
±30V |
| Input voltage sensitivity |
0.25Vpp @50MHz, 0.5Vpp @150MHz, 0.8Vpp @250MHz |
| Trigger voltage group |
2 (D0~D7, D8~D15 & CK0) |
| Trigger voltage range |
±30V |
| Trigger voltage resolution |
50mV |
| Reference voltage accuracy |
±100mV + 5%*Vth |
| Trigger resolution |
500ps |
| Trigger type |
External, Manual, Multi Level, Setup/Hold Violation, Single Level, Timeout, Width |
| Bus trigger |
BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eMMC 4.5, eSPI, HID over I2C, I2C, I2S, LIN2.2, LPC, MDIO, MII, Mini/Micro LED,
MIPI I3C 1.1, MIPI RFFE 3 , MIPI SPMI 2, Modbus, PMBus, Profibus, RGMII, RMII, SD 3.0 (SDIO 2.0), SENT, Serial Flash
(SPI NAND), SMBus, SPI, SVI2, SVI3, SVID, UART, USB PD 3.1, USB1.1 |

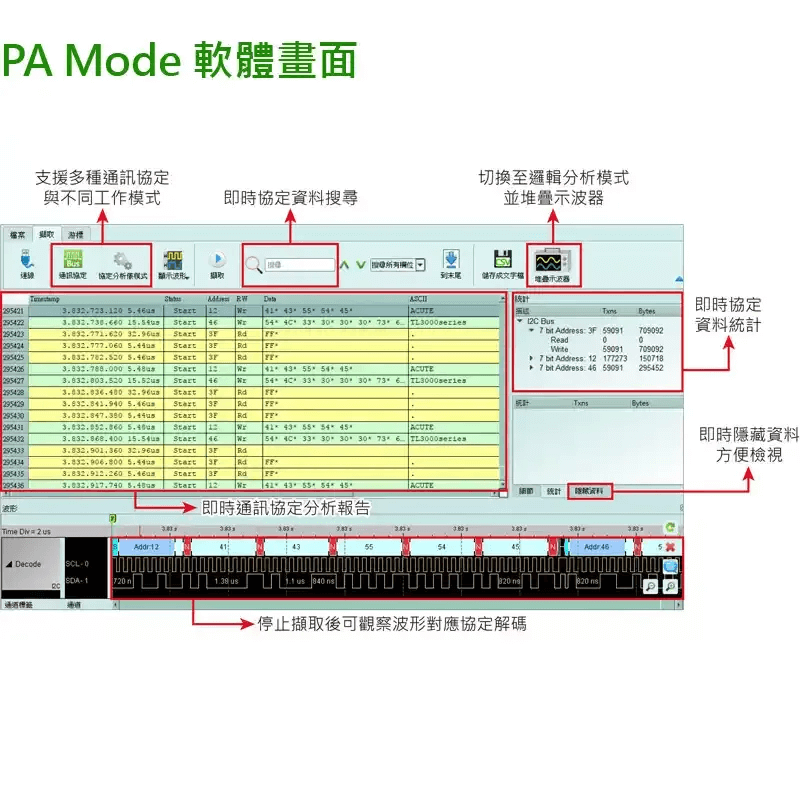

| Agreement analysis |
BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eSPI, HID over I2C, I2C, I2S, LIN2.2, MDIO, MII, MIPI I3C 1.1, MIPI RFFE 3, Modbus,
PMBus, Profibus, PWM, RGMII , RMII, SMBus, SPI, SVI3, SVID, UART, USB PD 3.1, USB1.1
|
