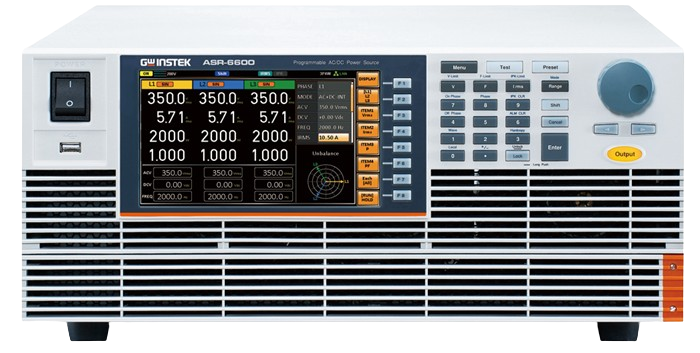

	ASR-6000 Series High Performance AC/DC Power Source

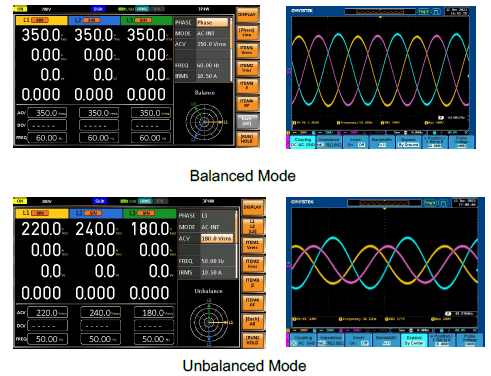

The ASR-6000 Series is a High-Performance AC/DC Power Source featuring a multi-range output design. The ASR-6000 Series is the newest addition to the GWINSTEK programmable power supply portfolio. The ASR-6000 has the ability to emulate diverse power environment changes like balanced three-phase and unbalanced three-phase, phase loss, programmable output impedance, and phase angle adjustment.

The ASR-6000 features multi-channel output function can test up to three DUTs (Single Phase) at the same time and has programmable output impedance adjustment. It also has built-in over 40 types of arbitrary waveform outputs.

The ASR-6000 has high power density, delivering up to 36 kVA of output power with a compact 4U form factor.

Features

	AC input supports single-phase and three-phase, phase voltage 200 V to 240 V±10 % (Delta or Y connection).
	10 output modes: including external input signal frequency and mains synchronization (SYNC), external voltage controlled internal amplifier output (VCA).
	Supports 1P2W, 1P3W, 3P4W output and multi-channel output function.
	AC maximum output phase voltage: 350 Vrms and line voltage: 700 Vrms.
	Frequency Range ：AC Mode: 15 Hz to 2000Hz, AC+DC Mode: 1 Hz to 2000 Hz.
	Programmable output impedance and phase adjustment.
	Dual-channel voltage/current output monitoring function.

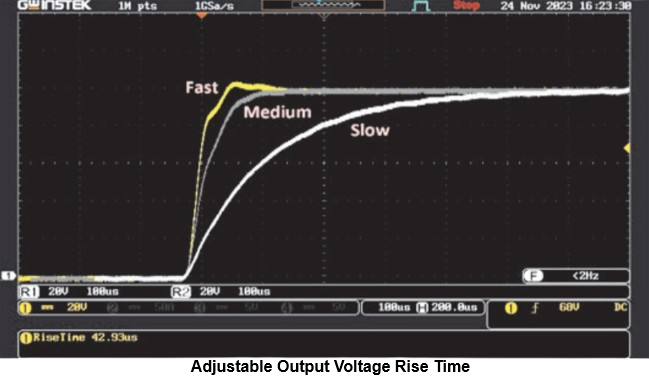

	Voltage output rise time can be adjusted in three ranges.
	Supports sequence editing and emulation output mode.
	Powerful arbitrary waveform editing and output function, capable of editing and outputting tens of thousands of waveforms.
	Advanced web server control to support data acquisition function.
	100th order harmonic measurement function.
	Standard interfaces: RS-232C, USB, LAN Optional: CAN Bus, Device Net, GPIB

ASR-6000 Series Application

	3.6 kVA to 22 kVA On-board charger		Server/communication power supply manufacturer
	Military industry, scientific research, education		Three-Phase Motor Protection Device
	Commercial and military avionics test		ATE applications
	Manufacturing and process control		Uninterruptible power supply system (UPS)
	High Power Inverter Testing		AC power simulation
